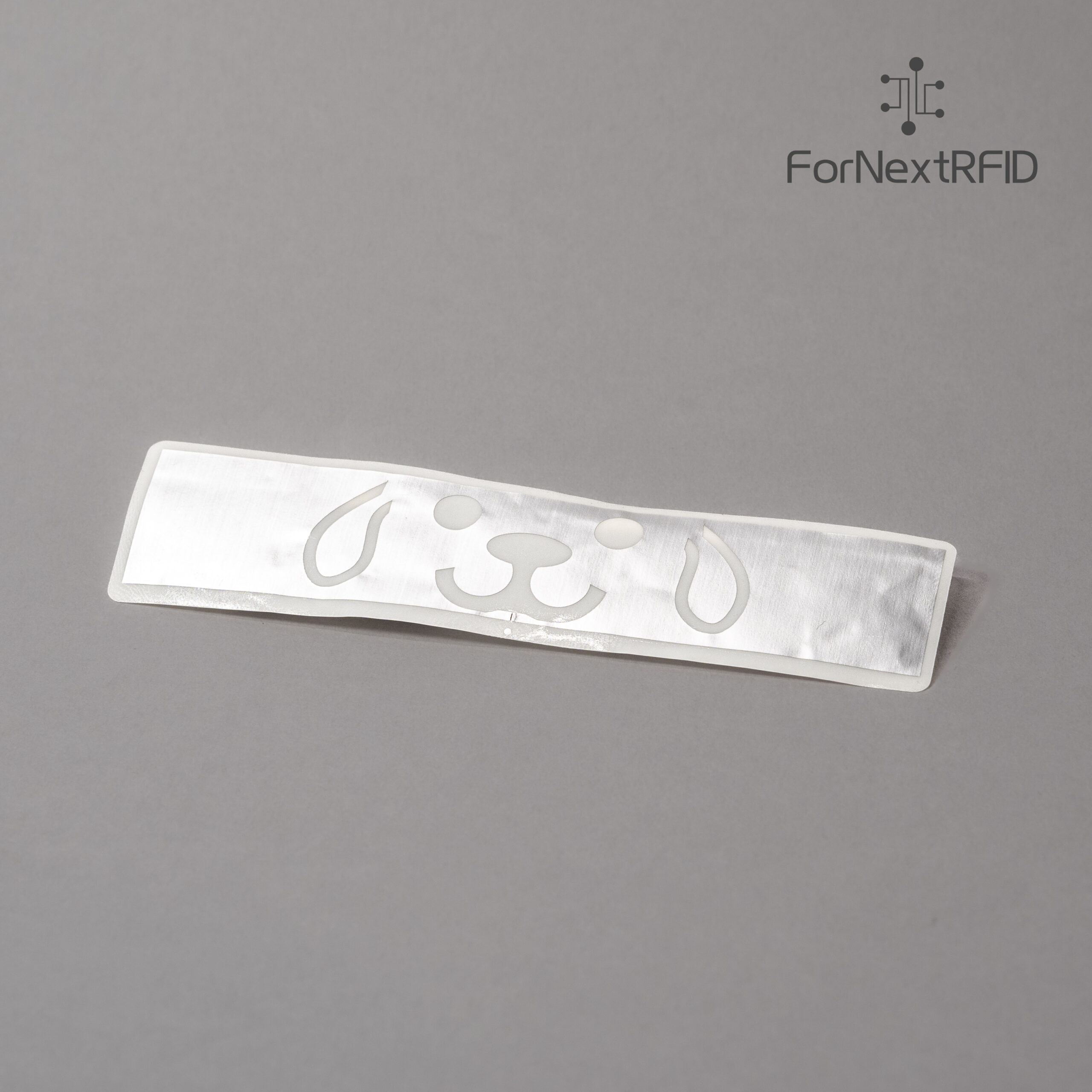

Full-Destruct Tamper-Evident RFID Label UHF 96×23mm | U8
The ForNext Full-Destruct Tamper-Evident Label is engineered for applications requiring the highest level of security and one-time use.
Unlike partial-cut tamper labels that only break in certain areas, this full-destruct design causes the entire antenna and label structure to fragment on removal, making reuse physically impossible.
Built with the U8 IC and a purpose-built destructible construction, the label adheres permanently to glass or smooth surfaces. Any attempt to peel it off results in the label not working
The optimised 96 × 23 mm antenna delivers a long read range of 12–15 metres under FCC band (860–960 MHz)
Key Features
- Full-destruct tamper-evident design — entire label disintegrates upon removal, preventing reuse or transfer
- Secure one-time application
- Long-range performance — 12–15 m using fixed readers (FCC)
- U8 chip for excellent sensitivity, fast response and stable EPC Gen2 performance
- Supports EPC Class 1 Gen 2 / ISO 18000-6C
- Available with coated paper, PET or synthetic destructible materials
- Custom printing & encoding — logo, serials, barcodes, QR codes, pre-programmed EPC
Specifications
| Dimensions | 96 × 23 mm or Customised |
| Chip | U8 |
| Protocol | EPC Class 1 Gen 2; ISO/IEC 18000-6C |
| Frequency | 860–960 MHz (FCC) |
| Memory | User: 32/64 bits; EPC: 128 bits; TID: 48 bits |
| Material | Destructible coated paper / destructible synthetic material |
| Structure | Full-Destruct Tamper-Evident (entire label breaks upon removal) |
| Read Range | 12 – 15 m (fixed reader) |
| Installation | Permanent adhesive — non-removable, single-use |
| Data Storage | Up to 10 years |
| Customisation | Printing, encoding, sequential numbering, QR/Barcode, pre-programming |
This full-destruct version is ideal for high-security identification, tolling systems, parking access management, gated communities and any application requiring guaranteed non-transferability.
