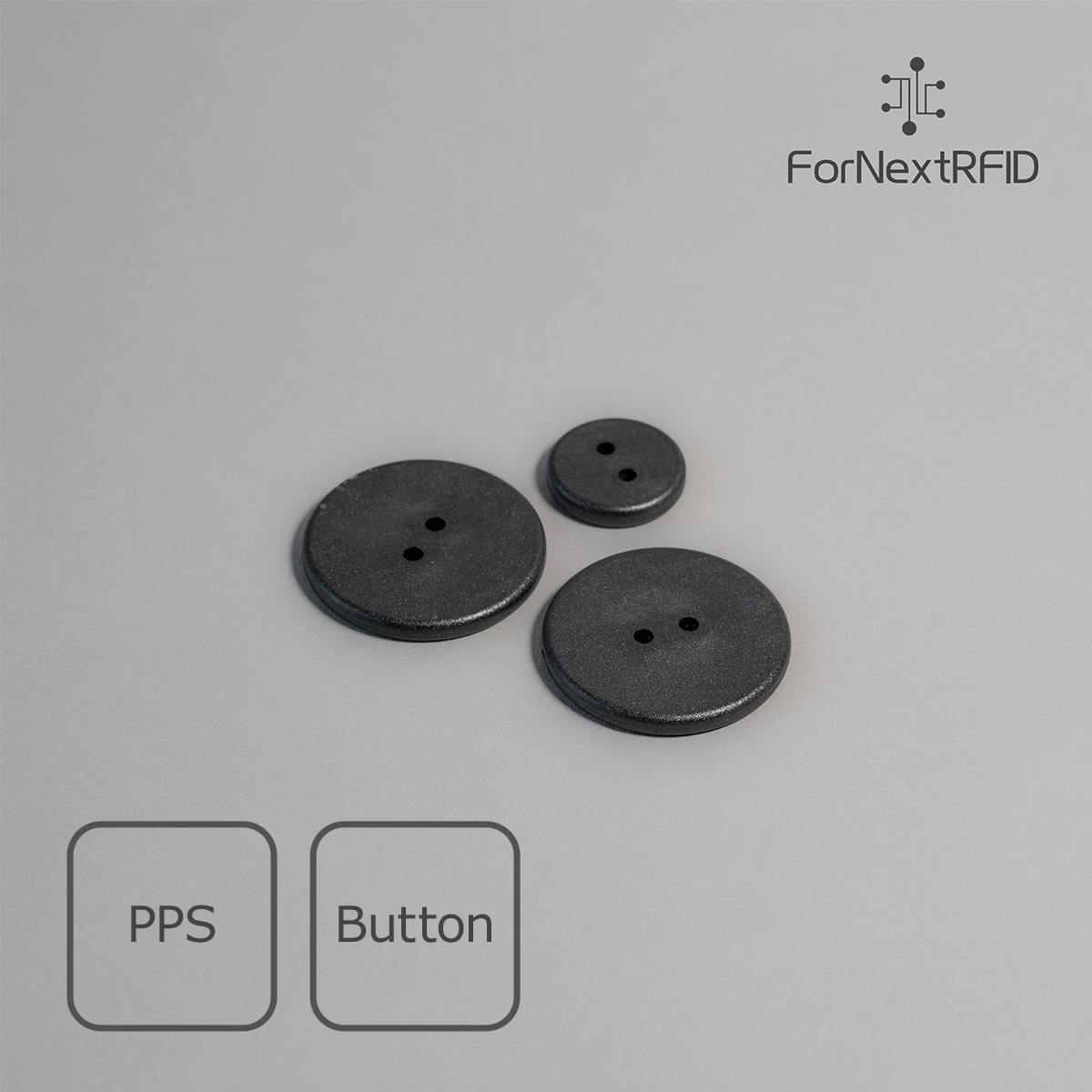

ForNext PPS UHF Laundry Button Tag 15mm/20mm/30mm
The ForNext 20mm PPS UHF laundry button tag is a rugged, high-temperature and on-metal-optimised transponder designed for workwear, uniforms, PPE, laundry cages and other textile or metal assets requiring long-term identification.
Its moulded PPS housing provides outstanding thermal resistance, chemical durability and impact protection, while the aluminium-etched antenna maintains stable performance in harsh industrial laundry environments.
The compact 20mm disc shape with a central 4.5 mm mounting hole allows the tag to be sewn onto garments, riveted or fixed via stud attachments.
Optimised for metal surfaces and compliant with ISO/IEC 18000-6C (EPC Class 1 Gen 2), it supports NXP UCODE 8 / UCODE 9 / H4 chips and delivers up to 2 m read range even on metallic items and up to 5m on non-metal surface.
With durability exceeding 300 industrial wash cycles, it is suitable for long-term rental-linen, uniform and asset-management applications.
The tag surface can be customised with laser-engraved serial numbers, barcodes, company logos or branding to support operational control and anti-counterfeit requirements.
Specifications
| Size | Diameter: 15mm/20 mm/30mm, Thickness: 2.8mm/2mm/3 mm |
| Material | PPS (polyphenylene sulfide) |
| Colour | Black |
| Chip Options | NXP UCODE 8 / UCODE 9 / H4 |
| RFID Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen 2 |
| Memory | EPC: 128 / 96 / 128 bits (read/write), TID: 96 bits (read-only), User area: 0 bits |
| Frequency | UHF 860–960 MHz |
| Read Range | 0–2 m (on metal, depending on reader and environment) |
| Mounting Surface | Optimised for metal surfaces |
| Wash Durability | 300+ industrial wash cycles |
| Working Temperature | –20 °C to +220 °C |
| Operating Mode | Passive |
| Chip Service Life | Up to 100,000 write cycles, 50-year data retention |
| ESD Protection | ±2000 V (HBM) |
Key Features
- PPS button tag suitable for uniforms, workwear, PPE, mats and metal assets
- High-temperature PPS housing withstands up to 220°C and harsh industrial processes
- Durability exceeding 300 industrial wash cycles
- On-metal compatible design offering up to 2 m read range on metal surfaces
- Central mounting hole for sewing, riveting or stud attachment
- Surface customisation available (laser serial numbers, barcodes, logos)
- Compliant with ISO/IEC 18000-6C, EPC Class 1 Gen 2
- Long chip service life with 100,000 write cycles and 50-year data retention
- Ideal for hotel, healthcare, manufacturing and industrial laundry operations
