UHF RFID Smartrac Dogbone Label 97×27mm | Impinj® M730
The ForNext 97×27mm UHF Smartrac Dogbone RFID label is engineered for applications that demand exceptional read sensitivity, long read range and mechanical durability.
Based on the industry-proven Smartrac Dogbone antenna structure, the label delivers highly efficient RF performance across a wide range of demanding environments.
This tag is commonly used in marathon and sports timing systems, where fast-moving participants must be accurately detected at checkpoints and finish lines.
It is also widely deployed on vehicle windshields for access control, parking management and vehicle identification due to its strong and stable read performance.
At the core of the label is the Impinj® M730 IC, offering fast EPC encoding and excellent sensitivity for long-range UHF RFID systems.
The streamlined memory structure with 128-bit EPC and no user memory makes it ideal for high-volume identification applications driven by backend systems.

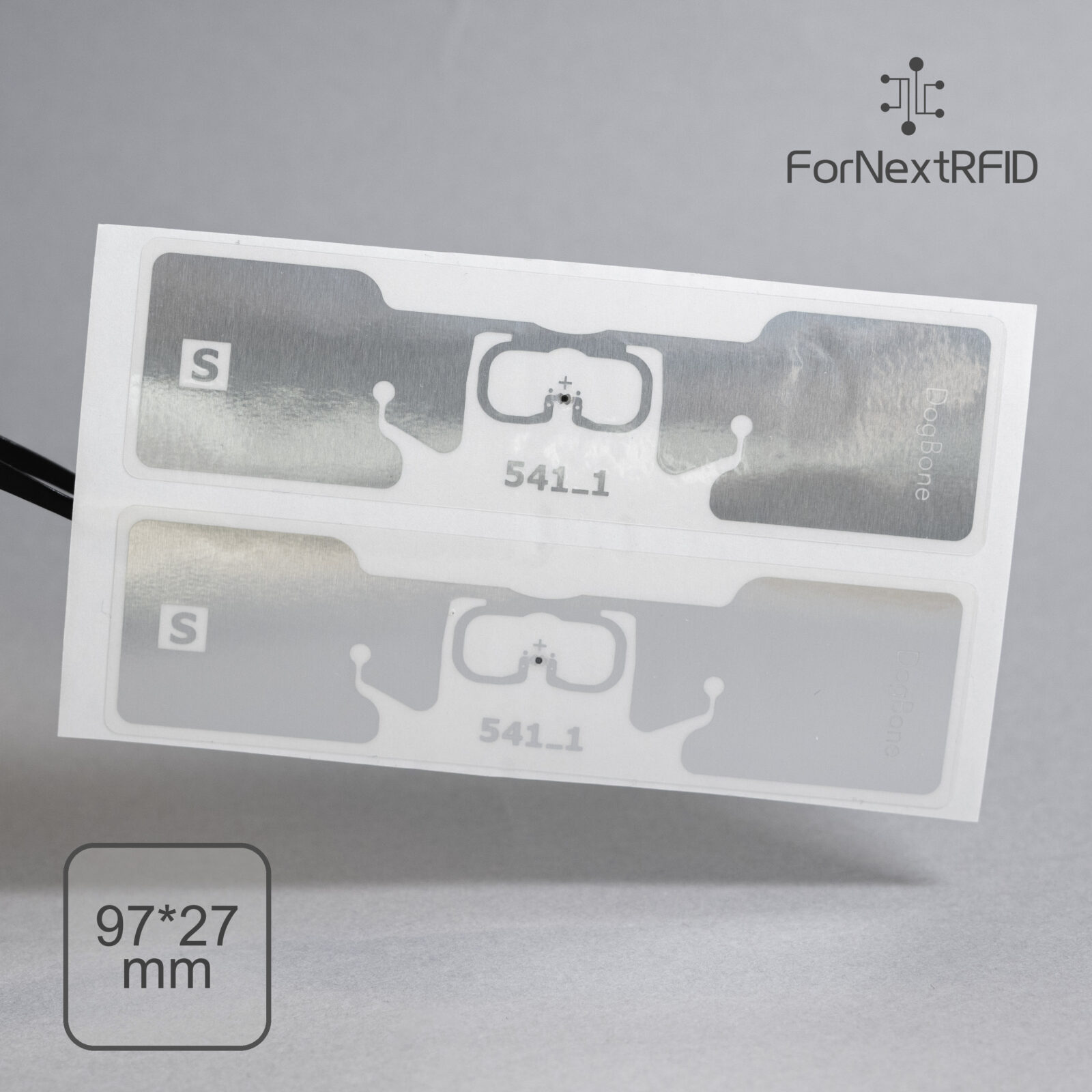

The standard label size is 97 × 27 mm, with an antenna size of 94 × 24 mm, optimised for maximum RF efficiency.
The default face material is transparent PET, providing durability and a clean appearance on glass surfaces.
Optional face materials including coated paper and PP synthetic paper are available to suit different application and cost requirements.
Key Features
- Smartrac Dogbone antenna design for long-range and high-sensitivity performance
- Impinj® M730 chip optimised for fast, accurate and large-scale identification
- Widely used in marathon timing and sports event tracking
- Ideal for vehicle windshield identification and access control applications
- Durable construction suitable for outdoor and high-speed environments
- Supports custom printing, EPC encoding and roll configurations
Specifications
| Label Dimensions | 97 × 27 mm |
| Antenna Size | 94 × 24 mm |
| Chip | Impinj® M730 |
| Protocol | ISO/IEC 18000-6C; EPCglobal Class 1 Gen2v2 |
| Frequency | UHF 860–960 MHz (Global) |
| EPC Memory | 128 bits |
| User Memory | 0 bits |
| Face Material | Transparent PET (standard); coated paper / PP optional |
| Installation | Self-adhesive |
| Customisation | Printing, EPC encoding, serialisation, roll formats |
This Smartrac Dogbone RFID label is a proven solution for long-range, high-speed and high-reliability RFID applications, particularly in sports timing and vehicle identification systems.
