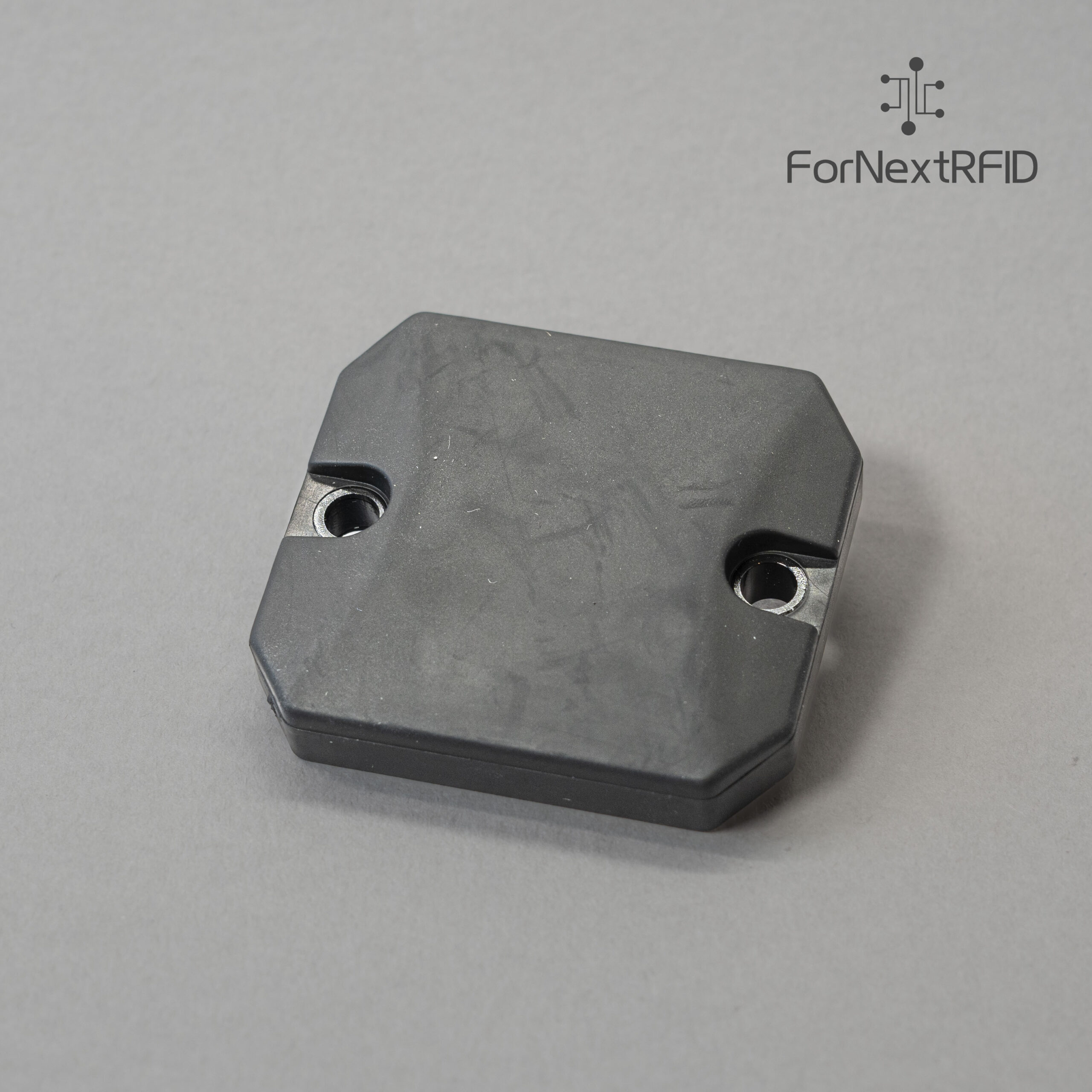

UHF Adhesive & Screw-Mount On-Metal RFID – Engineering plastics Tag 51×47mm | Monza R6-P
The ForNext 51×47mm Screw-Mount On-Metal RFID Tag is an industrial-grade, high-durability tag designed for metal equipment, tools, steel structures and embedded infrastructure applications.
Equipped with the Impinj Monza R6-P chip and a tuned on-metal antenna, it delivers strong, stable UHF performance even in high-interference environments such as construction sites, manufacturing plants and logistics yards.
Its reinforced engineering-grade plastic housing and 10 mm thick structure provide exceptional impact resistance and long-term outdoor reliability.
For installation, the tag supports three mounting methods — a 3M industrial adhesive backing for quick deployment, direct adhesion on flat metal surfaces, or secure screw/rivet mounting via the single 5 mm centre hole.
This flexibility makes the tag suitable for both permanent installations and rapid retrofits on metal assets with diverse surface conditions.
The antenna system is optimised not only for metal surfaces but also for embedded installations.
When installed beneath concrete, the tag maintains impressive read performance:
4.0–4.5 m at 5 cm depth and 2.0–3.0 m at 10 cm depth with fixed readers — enabling reliable identification of buried utilities, manhole covers, construction components and underground asset points.
Rated to IP68, the tag withstands harsh outdoor exposure, chemicals, vibration, water immersion, mud and temperature extremes from –40°C to +85°C.
It is designed for long-term industrial use across manufacturing, construction, utilities, logistics, maintenance operations and any site requiring durable on-metal or below-surface tagging.
Key Features
- IP68 rated — outdoor-ready for harsh industrial environments
- Industrial on-metal design — optimised for metal surfaces and embedded installations
- Three mounting options — 3M adhesive, direct adhesion or screw/rivet installation
- Concrete-embedded read performance — up to 4.5 m at 5 cm depth
- Long-range UHF performance — 10 m (FCC) / 7.5 m (ETSI) on metal
- Durable engineering plastic housing — impact-resistant and weatherproof
- Wide operating temperature — –40°C to +85°C
- Supports EPC Class 1 Gen2 / ISO 18000-6C
- Custom printing & encoding — EPC, serials, laser marking, QR/Barcodes
Specifications
| Dimensions | 51 × 47 × 10 mm |
| Chip | Impinj Monza R6-P |
| Protocol | EPC Class 1 Gen 2; ISO/IEC 18000-6C |
| Frequency | 840–940 MHz (Global UHF) |
| Memory | EPC 128 bits; User 64 bits; TID 96 bits |
| Material | Engineering Plastics |
| Mounting Options | 3M Adhesive / Direct Adhesion / Screw or Rivet Mounting (5 mm hole) |
| Read Range (Fixed, On Metal) | 10 m (US 902–928 MHz); 7.5 m (EU 865–868 MHz) |
| Read Range (Handheld, On Metal) | 5 m (US); 4.5 m (EU) |
| Embedded Read Range (5 cm Concrete) | 4.0 m (US); 4.5 m (EU) |
| Embedded Read Range (10 cm Concrete) | 2.0 m (US); 3.0 m (EU) |
| IP Rating | IP68 |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –40°C to +85°C |
| Certifications | CE, RoHS, REACH |
| Weight | 23.5 g |
| Warranty | 1 Year |
| Customisation | Laser marking, printing, encoding, barcodes/QR, EPC serialisation |
This industrial on-metal tag is ideal for asset identification in manufacturing plants, utilities, steel structures, underground infrastructure, logistics equipment, construction components and any application requiring long-term, durable RFID performance on or beneath metal surfaces.
