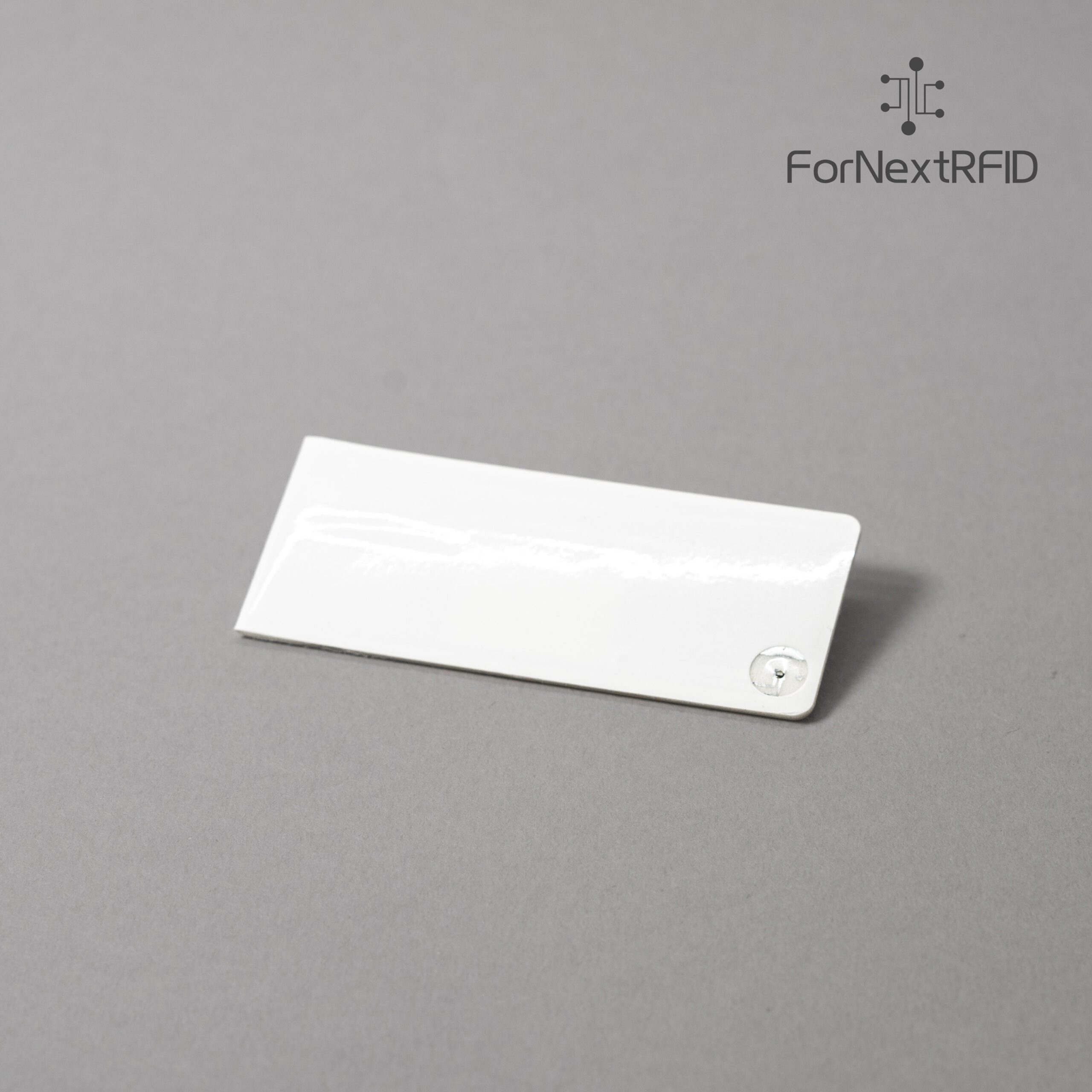

ForNext Flexible On-Metal UHF LED Label 60×25mm (FCC 902–928MHz)
The ForNext 60×25mm Flexible On-Metal UHF LED Label is an advanced smart tag that combines EPC Gen2 UHF tracking with a built-in LED indicator. Designed specifically for the FCC 902–928MHz band, it offers strong RF stability on metallic surfaces and is ideal for US-based industrial environments.
Powered by the KX2005X-BL LED chip, the tag flashes or lights up when a “locate” command is triggered, allowing operators to instantly identify the correct item among dense equipment, shelves, toolboards or IT racks. On metal, it provides a 6–7 metre read range under standard reader settings, and can reach up to 8 metres when paired with high-power readers and high-gain antennas.
Its flexible PET + aluminum-etched antenna + foam construction conforms to irregular or curved surfaces, while the industrial adhesive ensures long-term durability.
Specifications
| Dimensions | 60 × 25 × 1.35 mm |
| Chip Type | KX2005X-BL (LED) |
| Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
| Frequency | FCC 902–928 MHz (US version only) |
| Memory | EPC 240 bits (write once) • User 1312 bits • TID 96 bits |
| Read Range | 6–7 m on metal (up to 8 m depending on reader power and antenna) |
| Material | PET, aluminum-etched antenna, foam |
| Weight | 0.8 g |
| Operating Mode | Passive (battery-free) |
| Operating Temperature | -25°C to +50°C / 20%–80% RH |
| Storage Conditions | +23°C ±5°C / 50% ±10% RH |
| Durability | Data retention: 10 years |
| Quality | 100% tested before delivery |
| Customization | Logo printing, data encoding, EPC pre-programming |
Key Features
- FCC 902–928MHz tuned for the US market
- Built-in LED for fast item locating
- Flexible on-metal design for curved or irregular surfaces
- Strong metal-surface read range: 6–7m (up to 8m with high-power readers)
- Industrial PET + foam construction with strong adhesive
- Ideal for tools, medical equipment, IT assets and production-line tracking
- Custom printing, encoding and branding available
