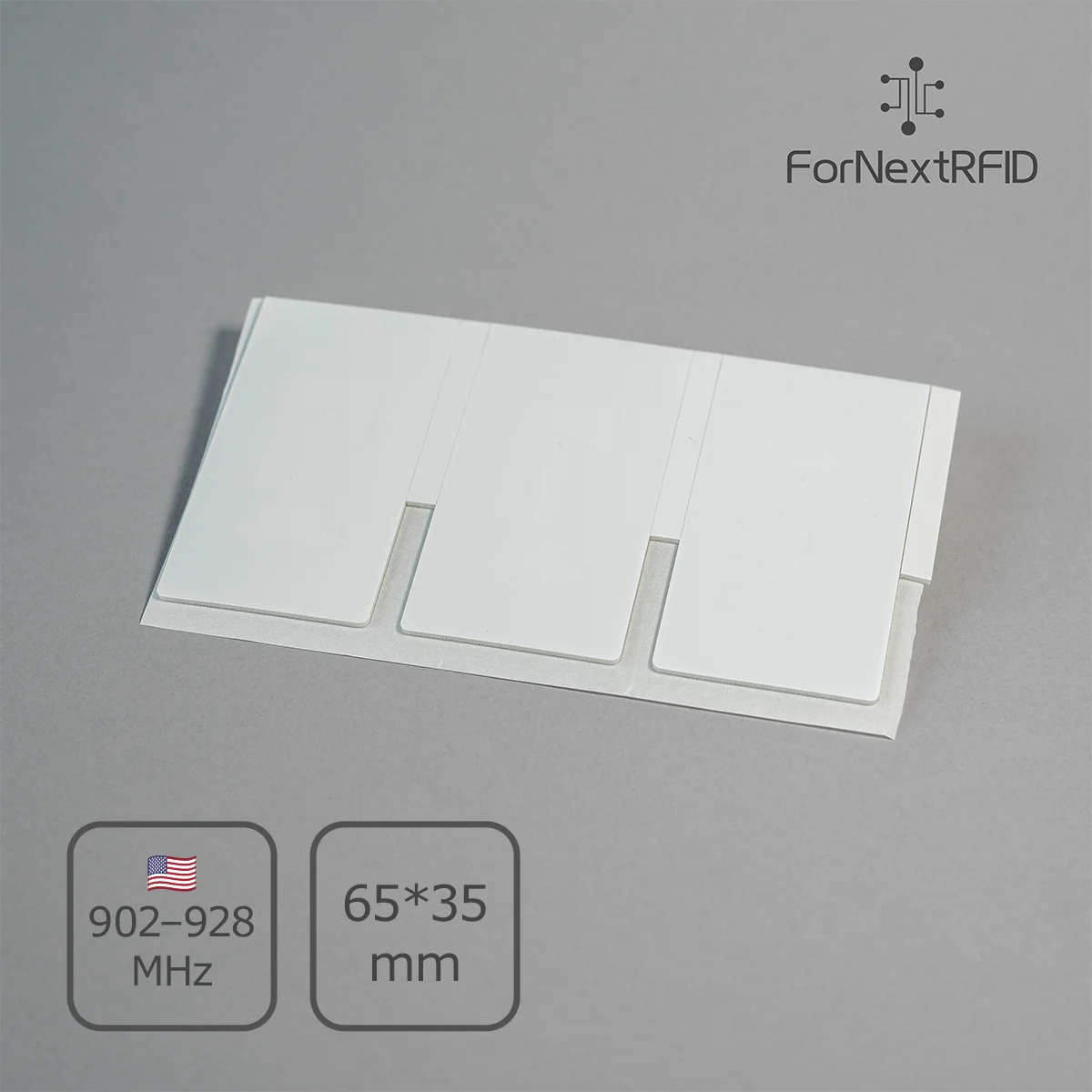

ForNext FCC UHF On-Metal RFID Label – Impinj Monza R6-P 65×35mm
The ForNext 65×35mm ETSI on-metal RFID label is a robust, high-performance tag engineered for accurate identification of medium and large metallic assets.
Designed specifically for the 902–928 MHz (FCC) band, it offers optimised tuning for European deployments where stable on-metal performance is essential.
Built with a PET–aluminium–foam composite and powered by the Impinj Monza R6-P chip, the tag provides excellent sensitivity, fast encoding and strong read reliability even in challenging RF environments.
Its larger 65×35 mm size enables extended read distance and improved visibility for applications such as warehouse shelves, containers, machinery and automotive components.
Specifications
| Dimensions | 65 × 35 × 1.25 mm |
| Frequency Band | FCC 902-928 MHz |
| Chip Type | Impinj Monza R6-P |
| Material | PET / Aluminium Foil / Foam |
| IP Rating | IP68 |
| Read Range (ETSI) | Up to 7.5 m on metal Up to 3 m off metal |
| Working Temperature | −40 to +85 °C |
| Humidity | 50 ± 15% RH |
| Installation | Industrial adhesive |
| Memory | User: 32/64 bits; EPC: 128 bits; TID: 48 bits |
| Re-write Cycles | 100,000+ |
| Data Retention | > 10 years |
| Printer Compatibility | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Applications | Metallic container tracking Warehouse & shelf labelling Equipment & device tracking Automotive components IT asset management Large metal machinery & tooling |
Key Features
- FCC-tuned on-metal RFID label optimised for US/Canada 902–928 MHz
- Larger 65×35 mm size for extended read range and asset visibility
- Up to 7.5 m read distance (FCC) on metal with fixed readers
- Durable PET–aluminium–foam construction with IP68 protection
- Powered by Impinj Monza R6-P for high sensitivity and fast encoding
- Industrial adhesive ensures secure mounting on metallic surfaces
- Suitable for shelves, containers, machinery, tools and IT equipment
- Compliant with ISO/IEC 18000-6C (EPC Class 1 Gen 2)
