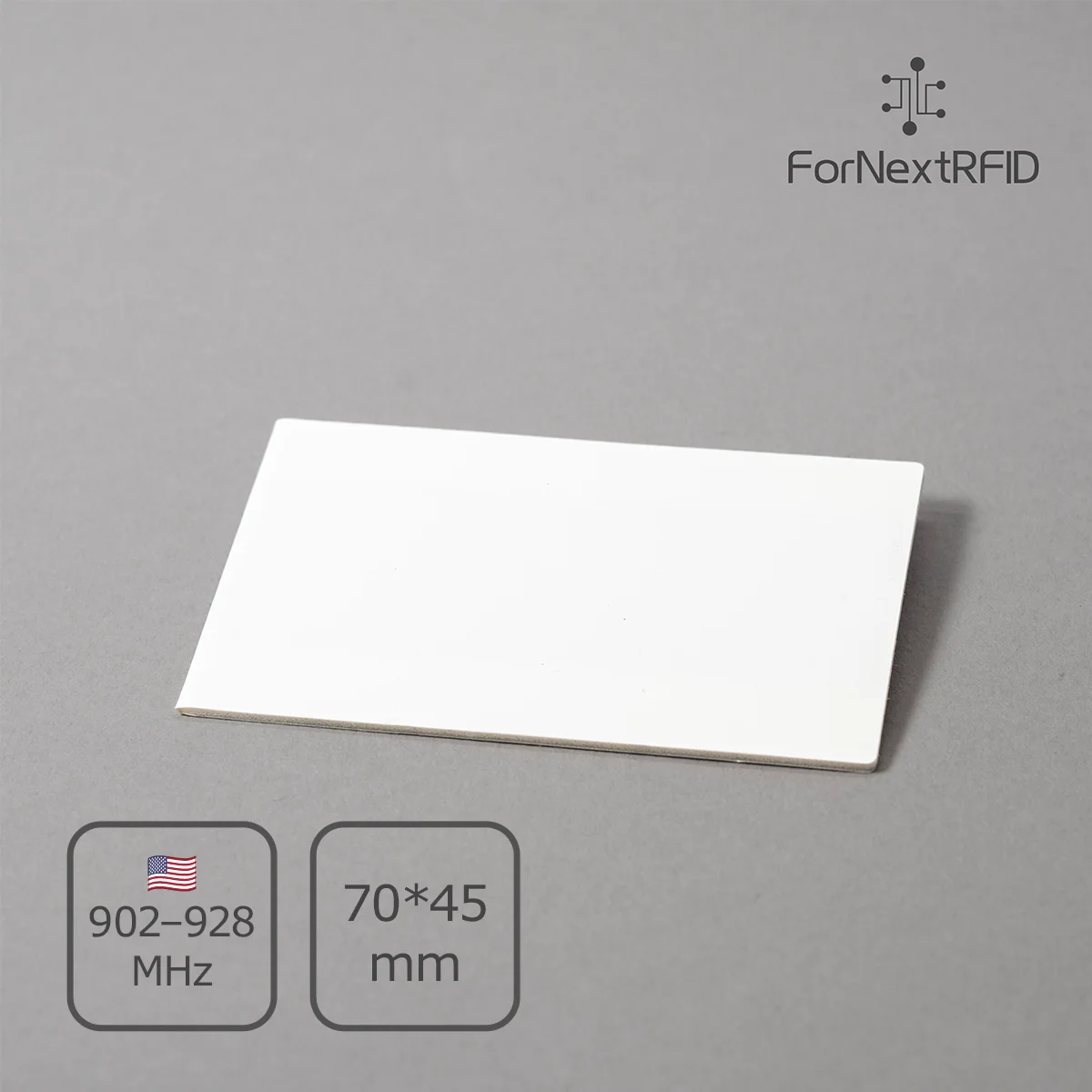

ForNext FCC On-Metal RFID Label 70×45mm (Impinj M730)
The ForNext 70×45mm FCC on-metal UHF label is a high-performance flexible tag engineered for metallic assets, tools, IT equipment and industrial tracking scenarios.
Optimised specifically for the 902–928 MHz FCC frequency band, it provides long read distance, stable RF behaviour and excellent performance across
logistics, manufacturing, warehousing and equipment management environments.
Built with a PET–aluminium–foam composite structure, the label conforms securely to flat, curved or uneven metal surfaces while maintaining strong RF efficiency.
Powered by the Impinj M730 IC, the tag offers fast inventory performance, excellent sensitivity and dependable EPC memory for large-volume deployments.
With robust construction, 100% inspection and long-term durability, it is ideal for industrial asset management, tool tracking, IT equipment identification, production line management and other demanding applications.
Specifications
| Dimensions | 70 × 45 × 1.35 mm |
| Chip Type | Impinj M730 |
| Operating Frequency | 902–928 MHz (FCC) |
| Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen 2 |
| EPC Memory | 128 Bits |
| User Memory | 0 Bits |
| TID | 96 Bits (Read Only) |
| Read Range | 10–12 m on metal (fixed reader), 5–6 m off metal |
| Material | PET + Aluminium Antenna + Foam |
| Installation | High-performance industrial adhesive |
| Operating Temperature | −40°C to +85°C |
| Storage Environment | 23°C ±3°C / 50% ±10% RH |
| Data Storage | 10 years |
| Packaging | Roll core 76.2 mm (3 inches), outer diameter < 220 mm, 200 pcs/roll |
Key Features
- Optimised for FCC 902–928 MHz (North America)
- Long read range: up to 12 m on metal
- Powered by Impinj M730 for fast, stable EPC performance
- Flexible on-metal structure adapts to curved and uneven surfaces
- Durable PET–aluminium–foam composite construction
- Strong adhesive for long-term industrial mounting
- Ideal for tools, IT assets, equipment, racks and metal containers
