LED PCB UHF On-Metal RFID Tag 60×20×3mm | Adhesive Mount | Metal Surface
🇺🇸 FCC Version — 902 to 928 MHz for the US and Canada market
🇪🇺 ETSI Version — 865 to 868 MHz for the European market

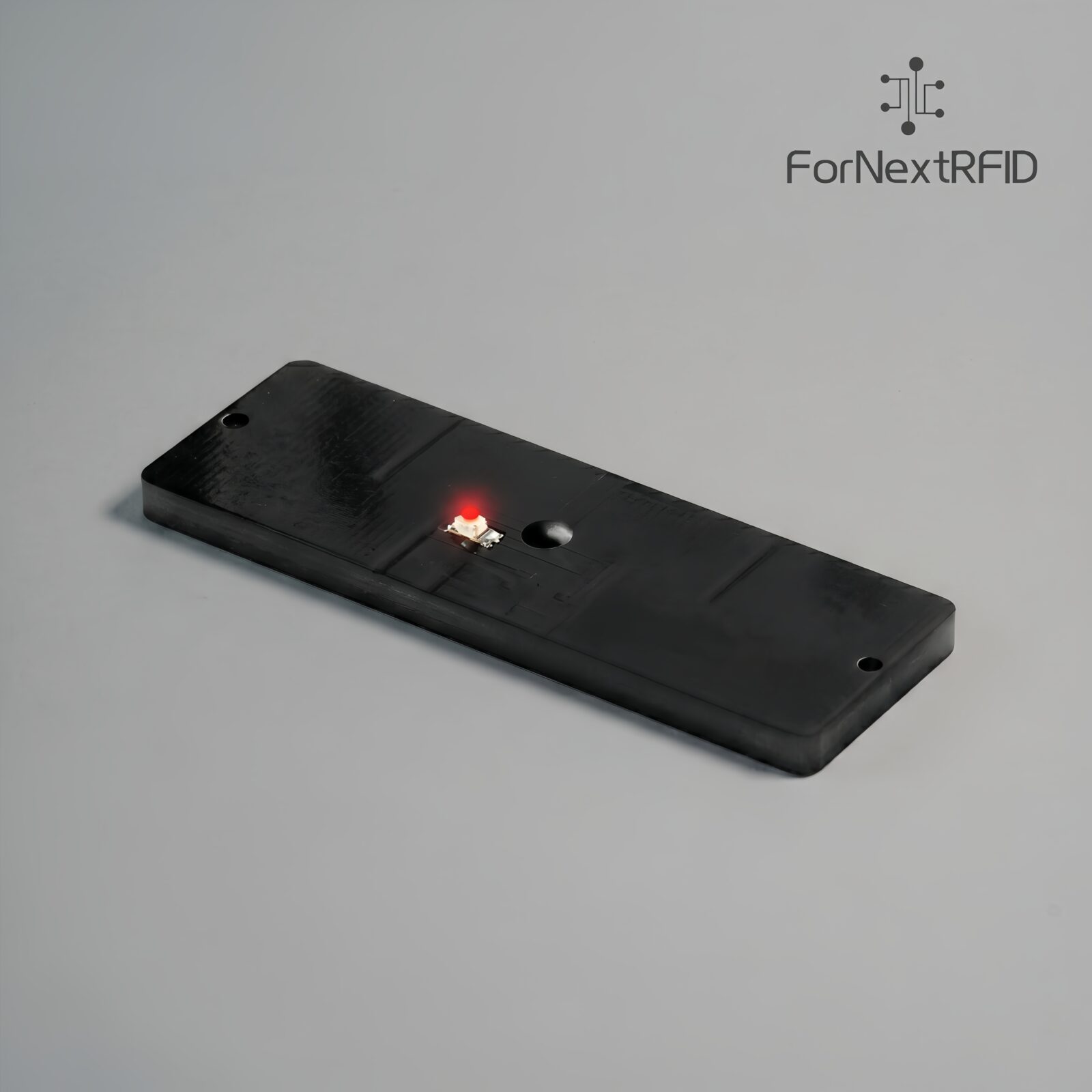

The ForNext 60×20×3mm LED PCB UHF on-metal RFID tag is a compact industrial tag engineered for applications that require reliable RFID identification and LED-assisted item location directly on metal surfaces.
Built with a durable PCB structure and adhesive backing, this version is specifically designed for metal surface applications, where standard RFID labels would normally lose performance due to metal interference. Its tuned construction helps maintain dependable UHF readability on metal tools, cabinets, equipment housings, machines, racks and other industrial assets.
A major advantage of this model is its LED locating function, which allows users to identify the correct tagged item more quickly during picking, maintenance checks, inspections and asset search tasks. This makes it especially valuable in environments where multiple similar metal assets are stored close together and fast visual confirmation is needed.
Powered by the XBL2005-KX chip, the tag supports EPC Class 1 Gen2 and ISO 18000-6C protocols. Memory includes EPC 128 bits, User Memory 1312 bits and TID 96 bits, providing strong storage capability for industrial and system integration needs.
With a compact size of 60 × 20 × 3 mm, this on-metal version offers a balanced combination of mechanical stability and strong metal-surface performance. Under fixed readers, the read range reaches up to 7 m in FCC and 5.6 m in ETSI. Under handheld readers, it supports up to 4 m in FCC and 3 m in ETSI. With an operating temperature range of -20°C to +80°C, it is suitable for industrial, warehouse and maintenance environments.
Key Features
- LED PCB UHF RFID tag designed for metal surface applications
- Compact 60 × 20 × 3 mm on-metal structure
- LED locating function for faster visual identification of tagged items
- Optimised for direct use on metal surfaces
- Adhesive backing for convenient installation
- Stable on-metal read performance under both fixed and handheld readers
- XBL2005-KX chip with EPC 128 bits and User Memory 1312 bits
- Suitable for industrial tools, machinery, racks, cabinets and maintenance systems
Specifications
| Model | OPP6020LM |
| Dimensions | 60 × 20 × 3 mm |
| Material | PCB |
| Mounting Method | Adhesive backing |
| Frequency Versions | FCC 902 to 928 MHz / ETSI 865 to 868 MHz |
| Chip | XBL2005-KX |
| Protocol | EPC Class 1 Gen2; ISO/IEC 18000-6C |
| Memory | EPC 128 bits; User Memory 1312 bits; TID 96 bits |
| Applicable Surface | Metal surface |
| Read Range (Fixed) | Up to 7 m in FCC; up to 5.6 m in ETSI |
| Read Range (Handheld) | Up to 4 m in FCC; up to 3 m in ETSI |
| Operating Temperature | -20°C to +80°C |
| Weight | 7.5 g |
This compact on-metal LED PCB RFID tag is ideal for metal asset tracking, industrial equipment identification, maintenance workflows and smart inventory applications where RFID visibility and fast item location are both required.
