High-Temperature UHF RFID Label 98×18mm | UCODE G2iM

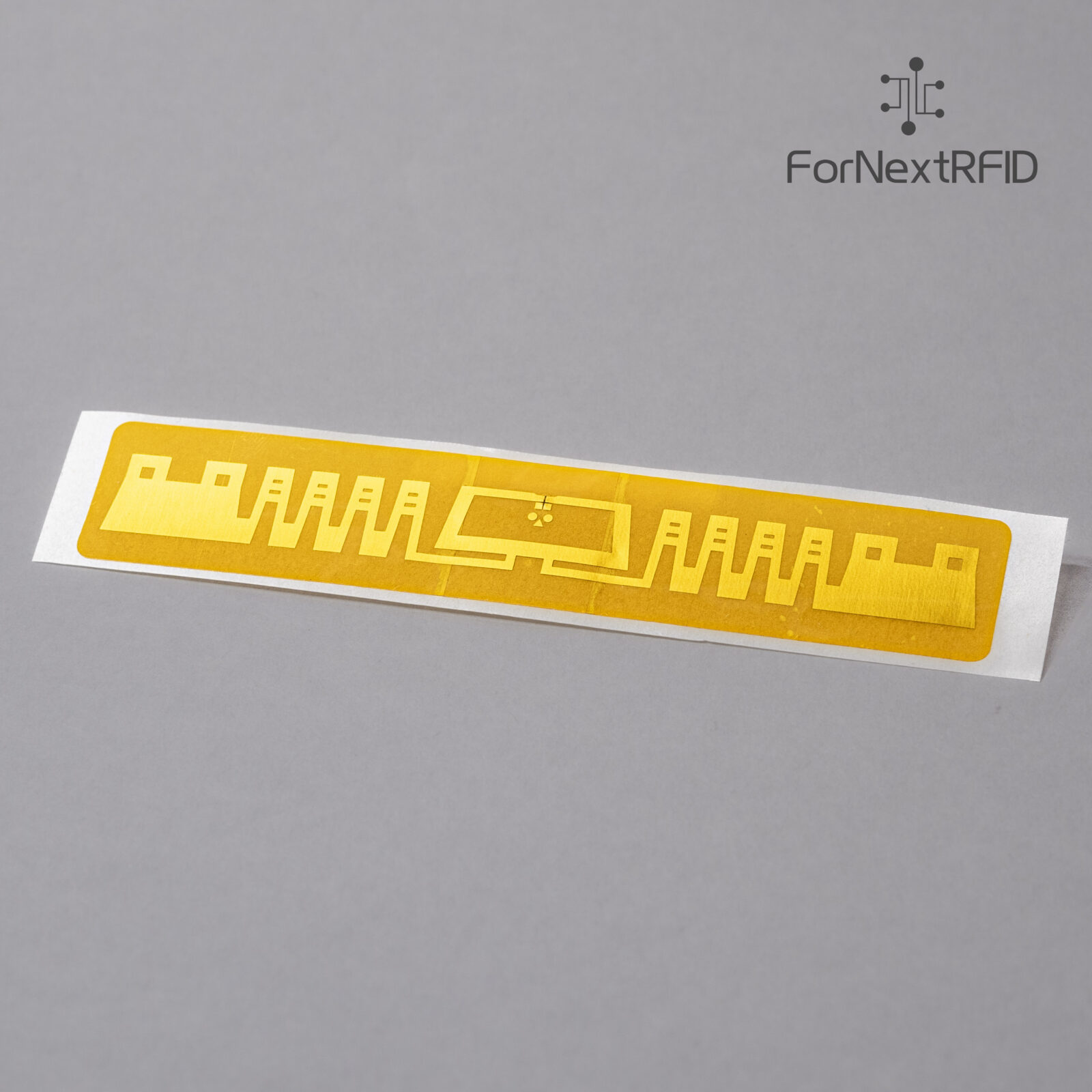

The ForNext 98×18mm High-Temperature PI UHF RFID Label is engineered for industrial environments that demand both long read range and extreme heat resistance.
Built on a durable polyimide (PI) substrate with an aluminium-etched long antenna, and powered by the NXP UCODE G2iM chip, this label delivers stable performance through high-temperature processes such as reflow soldering, automotive painting, curing ovens, powder coating and demanding WIP tracking.
The oversized 98×18mm antenna format provides significantly enhanced RF sensitivity and read distance.
When paired with the G2i chip’s excellent reception characteristics, this label achieves long-range identification even in environments with metal surfaces, high interference, or large-scale industrial movement — making it ideal for supply chain visibility, returnable assets and high-temperature process automation.
The PI material ensures outstanding thermal stability and chemical resistance, allowing the label to withstand continuous temperatures up to +150°C and repeated thermal cycling without deformation or performance degradation.
The UCODE G2iM IC incorporates a 256-bit EPC memory and large user memory for storing process data, batch numbers, calibration information or tamper-proof identifiers — a major advantage in industrial and manufacturing applications.
With 100,000 programming cycles and long data retention, the G2i-based design supports reliable, lifetime identification across extended production cycles.
Supplied on rolls for automated printing and application systems, the 98×18mm label fits seamlessly into industrial workflows where consistency and process tolerance are critical.
Key Features
- High-temperature PI substrate — designed for continuous use up to +150°C
- Large 98×18mm antenna — extended read distance and strong RF sensitivity
- Powered by NXP UCODE G2i — with large user memory for industrial data storage
- Aluminium-etched antenna for stable, reliable UHF Gen2 performance
- Supports EPC Class 1 Gen2 / ISO 18000-6C
- Ideal for harsh processes — reflow, paint lines, curing, ovens, powder coating
- High ESD immunity — suitable for electronics and automotive assembly lines
- Roll-based format for automatic labelling systems
- Custom printing & encoding available — EPC, serials, barcodes, branding
Specifications
| Dimensions | 98 × 18 mm |
| Substrate | PI (Polyimide) |
| Antenna Material | Aluminium Etching |
| Chip / IC | NXP UCODE G2i |
| Protocol | EPC Class 1 Gen2; ISO/IEC 18000-6C |
| Frequency | 860–960 MHz (Global UHF) |
| EPC Memory | 256bit |
| User Memory | 512bit |
| TID | 96 bits |
| Operating Temperature | –25°C to +150°C |
| Storage Temperature | –25°C to +150°C (in sealed ESD packaging) |
| Operating Mode | Passive UHF |
| Typical Read Range | Long range (dependent on reader power & environment) |
| ESD Protection | 2 kV HBM |
| Packaging | Roll-based (approx. 2,500 pcs/roll) |
| Customisation | Logo, printing, encoding, barcodes |
This 98×18mm high-temperature PI RFID label is ideal for automotive paint lines, curing ovens, powder-coating systems, electronics manufacturing, WIP tracking and any industrial process where long-range UHF performance must survive elevated temperatures.
