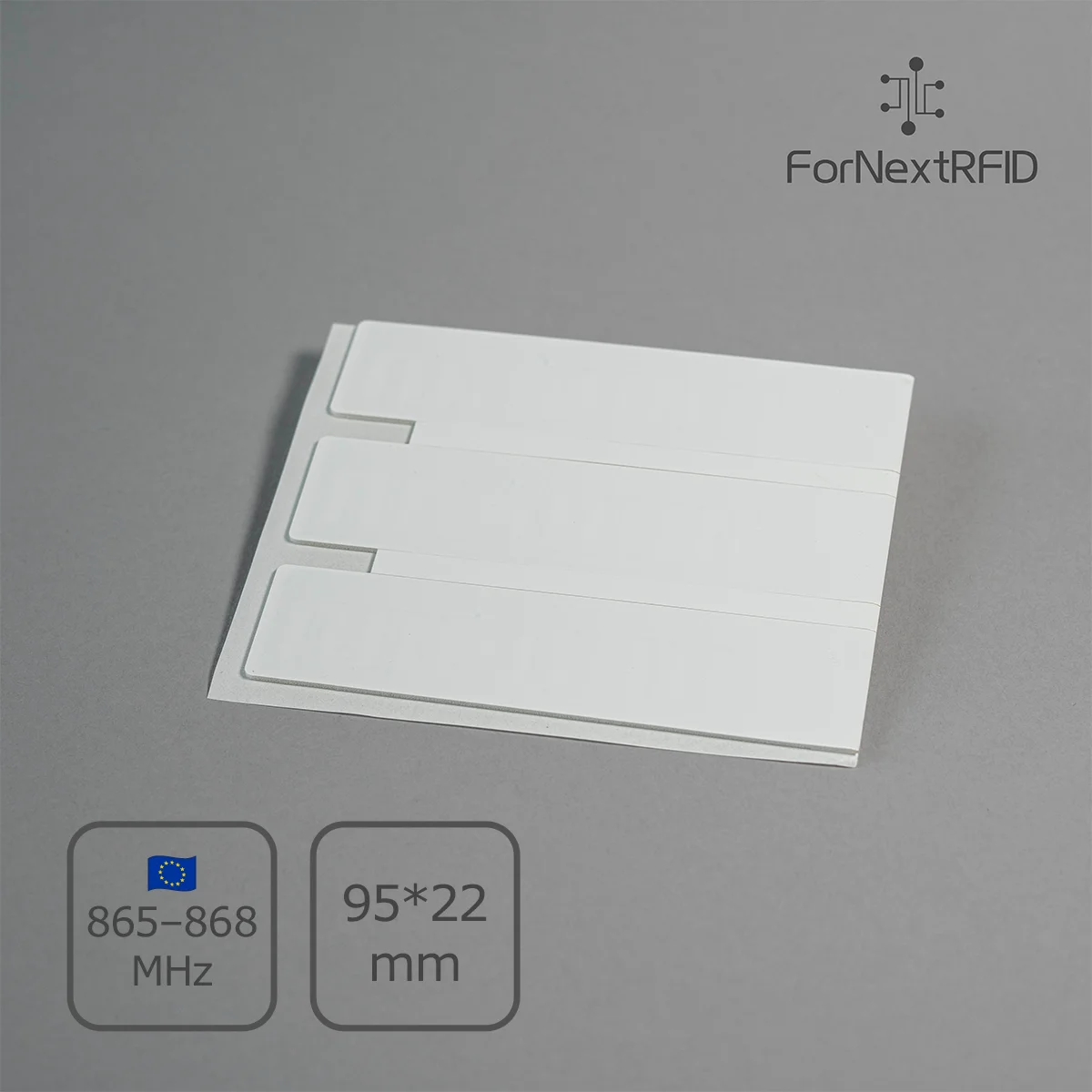

ForNext UHF On-Metal RFID Label – Impinj Monza R6-P 95×22mm, ETSI
The ForNext 95×22mm ETSI on-metal RFID label is engineered for high-performance identification of metallic assets across warehouse, logistics and industrial environments.
Tuned exclusively for the 865–868 MHz (ETSI) frequency band, the tag delivers extended read distance and exceptional stability on conductive surfaces.
Built with a PET–aluminium–foam laminate and equipped with the Impinj Monza R6-P chip, it offers high sensitivity, reliable encoding and excellent durability in demanding field conditions.
The elongated 95×22 mm format provides enhanced antenna efficiency, enabling long-range reading of racks, pallets, tools, machinery and metallic components.
Specifications
| Dimensions | 95 × 22 × 1.25 mm |
| Frequency Band | ETSI 865–868 MHz |
| Chip Type | Impinj Monza R6-P |
| Material | PET / Aluminium Foil / Foam |
| IP Rating | IP68 |
| Read Range (ETSI) | Up to 8.0 m on metal Up to 7.0 m off metal |
| Working Temperature | −40 to +85 °C |
| Humidity | 50 ± 15% RH |
| Installation | Industrial adhesive |
| Memory | User: 32/64 bits; EPC: 128 bits; TID: 48 bits |
| Re-write Cycles | 100,000+ |
| Data Retention | > 10 years |
| Printer Compatibility | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Applications | Metallic container tracking Warehouse shelf identification Industrial equipment & device tracking Automotive components management IT asset tracking Heavy-duty logistics and supply chain workflows |
Key Features
- ETSI-tuned on-metal RFID label designed for 865–868 MHz
- Up to 8 m read range on metal (ETSI) with long antenna design
- Durable PET–aluminium–foam construction with IP68 protection
- Powered by Impinj Monza R6-P for superior sensitivity and encoding speed
- 95×22 mm format provides strong performance for industrial metal assets
- Secure adhesive mounting suitable for curved or flat metallic surfaces
- Ideal for logistics, automotive components, tooling and IT asset tracking
- Compliant with ISO/IEC 18000-6C (EPC Class 1 Gen 2)
