ARC Approved UHF RFID Paper Tag 45×18mm | Avery Dennison Smartrac Miniweb | NXP UCODE® 9
The ForNext ARC approved UHF RFID paper tag is engineered for applications that require compact size, reliable retail performance and efficient item level identification in apparel, logistics and supply chain environments.
Built with Avery Dennison Smartrac Miniweb and powered by the NXP UCODE® 9 chip, this RFID paper tag offers strong performance in a small form factor. It is especially suitable for small apparel labels and other compact retail tagging formats where space is limited but dependable read performance is still required.
With a compact size of 45 × 18 mm, this paper tag can be easily converted into end application use and is available for a wide range of retail and industrial item level applications. The tag operates in the UHF FCC band 902 to 928 MHz and is compliant with EPC Class 1 Gen 2 and ISO 18000 63, supporting reliable deployment in RFID enabled retail and logistics systems.
The NXP UCODE® 9 chip provides 96 bit EPC memory and includes an automatic self adjust feature that helps maximise chip sensitivity and improve product performance in challenging environments. This optimisation takes place at startup and is enabled in the default chip configuration, allowing the tag to achieve stronger read and write sensitivity and faster encoding speed compared with earlier chip generations.
This product has passed selected ARC approved categories for FCC retail performance, including F, O, Q, W5 and W6. These approvals indicate suitability for demanding retail use cases, including apparel, merchandising and other item level applications that require stronger RF performance than standard retail labels.
Manufactured in a mid gloss paper construction with RA 5 adhesive, this RFID tag is suitable for application on materials such as plastic, cardboard and glass. It is also compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, supporting consistent quality and reliable manufacturing standards.
Key Features
- ARC approved UHF RFID paper tag for retail and item level RFID applications
- Built with Avery Dennison Smartrac Miniweb and NXP UCODE® 9

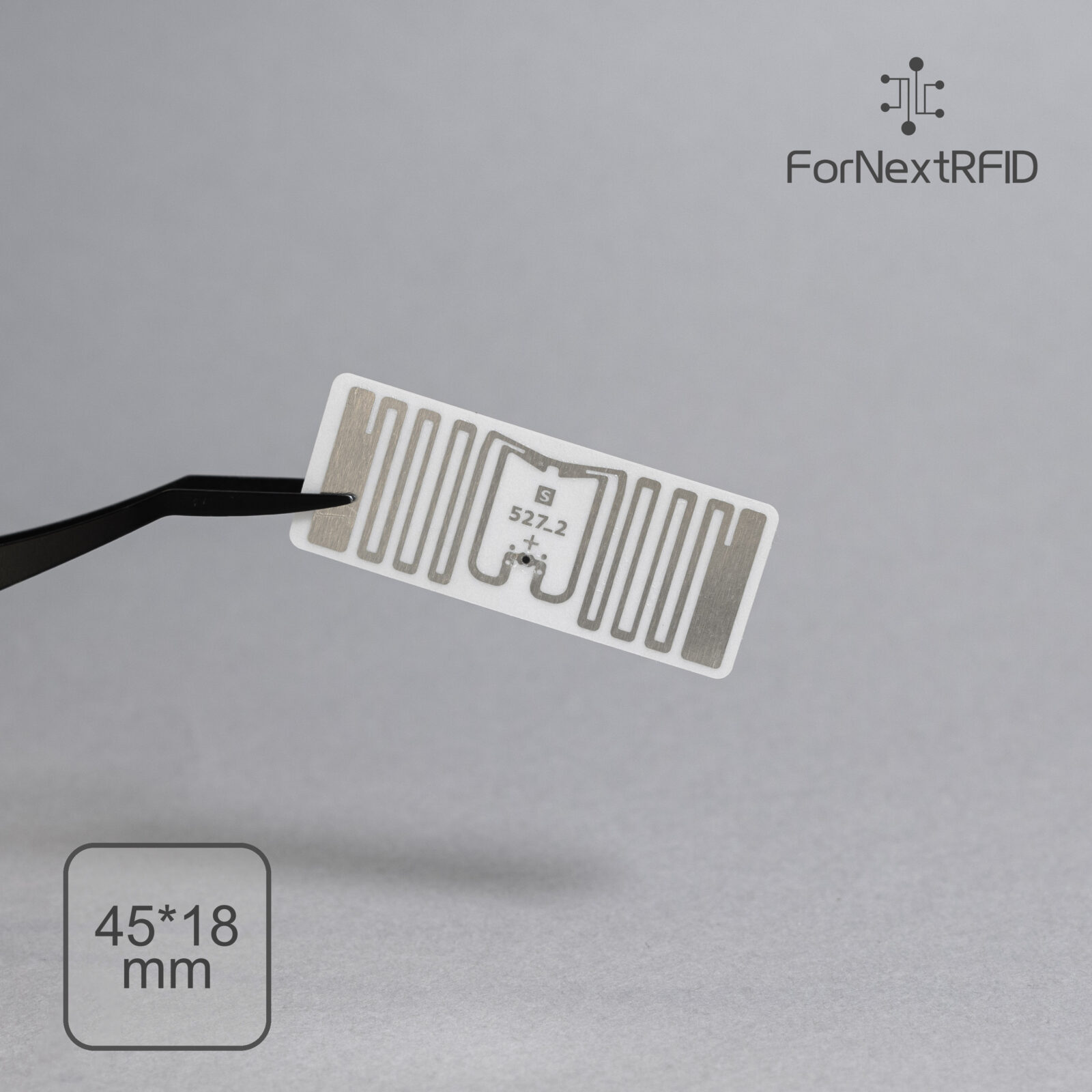

- Compact 45 × 18 mm size, ideal for small apparel labels
- Compliant with EPC Class 1 Gen 2 and ISO 18000 63
- Automatic self adjust feature to maximise performance in challenging environments
- Approved for FCC ARC categories F, O, Q, W5 and W6
- Suitable for plastic, cardboard and glass surfaces
- Mid gloss paper construction with RA 5 adhesive
- Designed for retail, authentication and supply chain applications
Specifications
| Product Type | UHF RFID Paper Tag |
| Platform | Avery Dennison Smartrac Miniweb |
| Dimensions | 45 × 18 mm |
| Antenna Dimensions | 42 × 16 mm |
| Tag Form Factor | Paper Tag |
| Material | Mid gloss paper |
| Attachment Method | RA 5 adhesive |
| Operating Frequency | FCC 902 to 928 MHz |
| Protocol | EPC Class 1 Gen 2, ISO 18000 63 |
| Chip Type | NXP UCODE® 9 |
| EPC Memory | 96 bit |
| EPC Memory Content | Not guaranteed unique |
| ARC Approved Categories | F, O, Q, W5, W6 |
| Applicable Surfaces | Plastic, cardboard, glass |
| Weight | Approx. 1 g |
| Operating Temperature | -40°C to +85°C |
| Industry Segments | Apparel, logistics, healthcare |
| Applications | Retail, product authentication, supply chain management, home essentials, inventory and logistics |
This ARC approved UHF RFID paper tag offers a compact and efficient solution for small format retail labeling, making it especially suitable for apparel, authentication and supply chain applications where space saving design and reliable RFID performance are both important.
