UHF RFID Glass Bottle Label 40×20mm | Dry Powder Optimised | EPC 128 + User 32

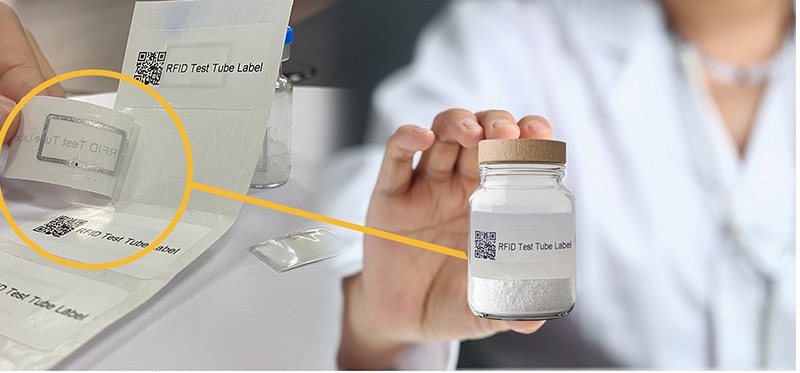

The ForNext 40×20mm UHF RFID glass bottle label is developed for reliable tracking and supervision of pharmaceutical bottles, especially where the bottle contents are dry powder.
Applied to glass containers used in medical and retail workflows, the label enables real-time identification and traceability across storage, circulation and usage stages — supporting safer handling and better compliance.
This model is optimised for use on glass bottles and delivers best performance when applied to bottles filled with dry powder, helping improve read consistency in practical deployments.
It supports a typical read range of around 5 metres (depending on reader power and environment).
The standard face material is coated paper, while PET, PP and thermal paper options are available to match durability, printing and application requirements.

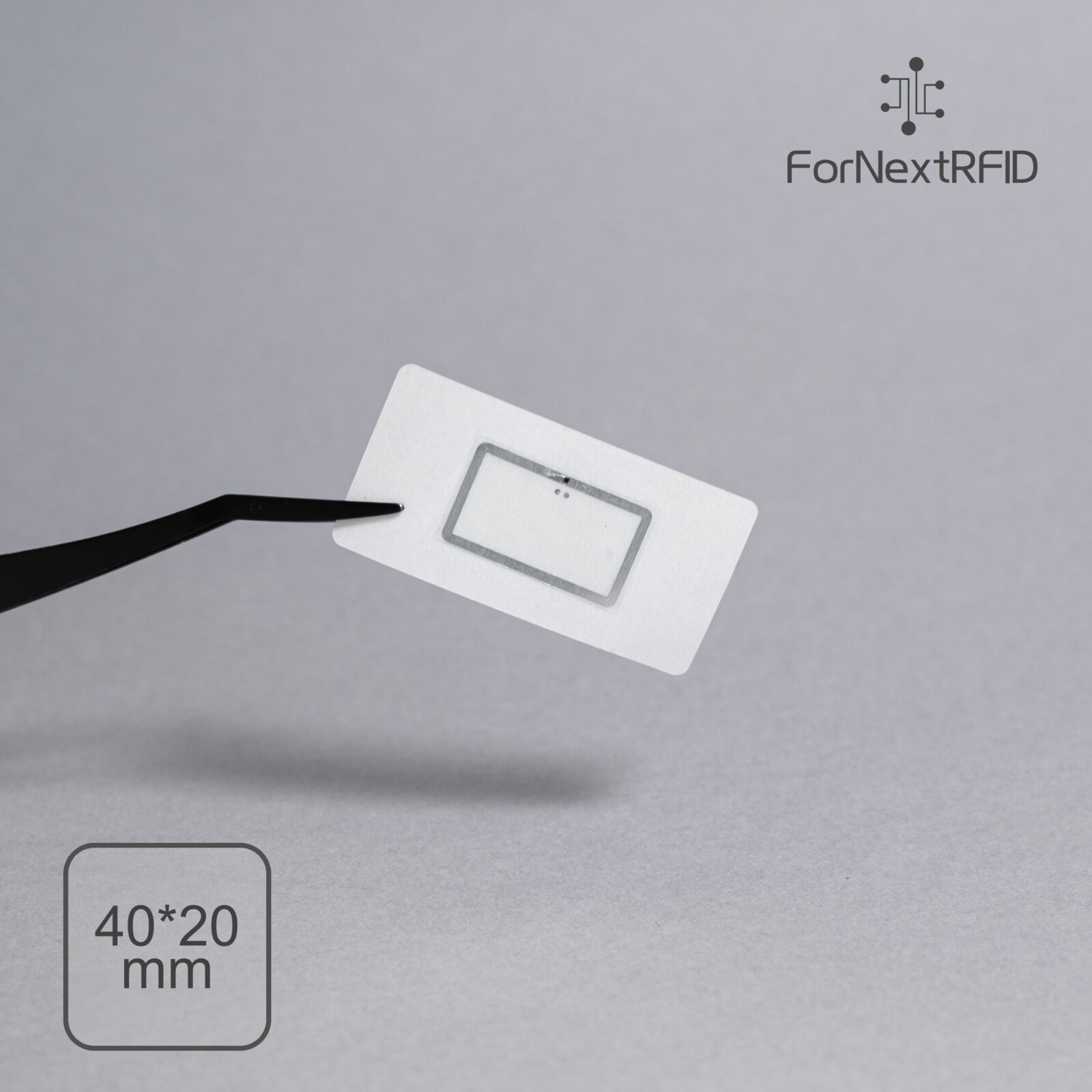

The label size is 40 × 20 mm as standard, with full customisation available for size, printing and encoding.
Key Features
- Optimised for glass bottles with dry powder contents for stable UHF performance
- EPC 128-bit + 32-bit User Memory for item ID and additional process/status data
- Typical read range around 5 m (environment and reader dependent)
- Standard coated paper face material; optional PET / PP / thermal paper
- Suitable for medical management, pharmaceutical tracking and retail item control
- Supports printing, serialisation and pre-encoding for deployment-ready delivery
Specifications
| Dimensions | 40 × 20 mm (custom sizes available) |
| Application | Glass bottle tracking (best performance on bottles filled with dry powder) |
| Protocol | ISO/IEC 18000-6C |
| Frequency | UHF 860–960 MHz (Global) |
| Memory | EPC: 128 bits; User: 32 bits |
| Face Material | Coated paper (standard); PET / PP / thermal paper (optional) |
| Installation | Self-adhesive (peel-and-stick) |
| Read Range | Typical ~5 m (depending on reader power and environment) |
| Customisation | Printing, pre-encoding, serialisation, size and roll format |
This glass-bottle RFID label is ideal for organisations needing dependable, scalable tracking of dry-powder pharmaceutical containers across medical, drug management and retail workflows.
