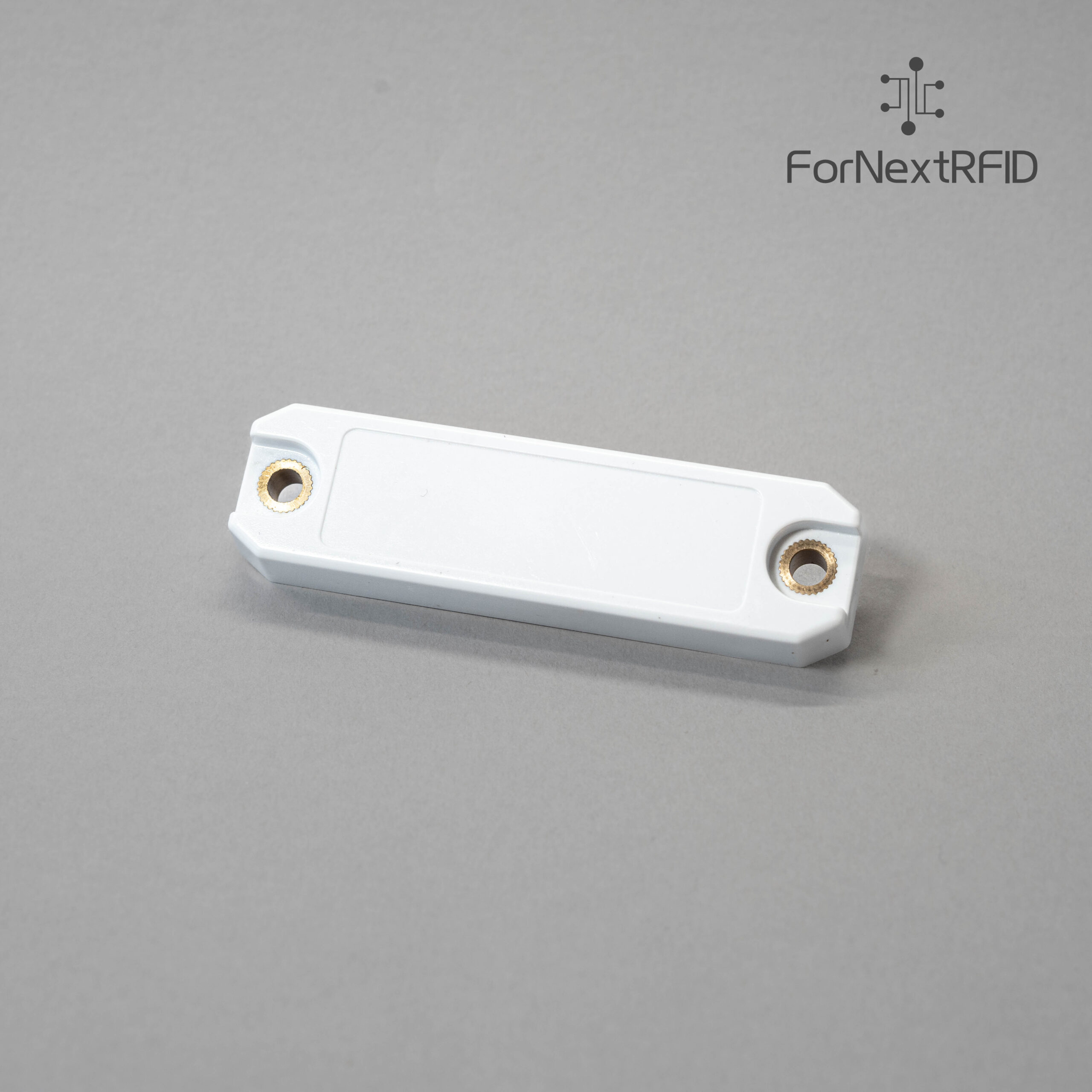

UHF Screw-Mount On-Metal RFID Tag 89×25mm | Monza R6-P
The ForNext 89×25mm Screw-Mount On-Metal RFID Tag is a rugged, industrial-grade tag engineered specifically for applications where metallic surfaces typically weaken or block UHF signals.
Its tuned on-metal antenna and Impinj Monza R6-P chip deliver strong, stable performance in challenging environments, ensuring reliable identification for tools, machinery, IT equipment, steel containers and fixed industrial assets.
Designed with a durable PC housing and a thickness of 10.5 mm, the tag withstands impact, vibration and long-term outdoor exposure.
For installation, it supports three mounting methods — a 3M industrial adhesive backing for quick peel-and-stick deployment, direct surface adhesion on flat metallic areas, or secure screw/rivet mounting via the dual 5 mm holes.
This flexibility allows the tag to be deployed across a wide range of metal assets with different surface conditions or long-term durability requirements.
Under fixed readers, the tag achieves up to 12 m (FCC) and 10 m (ETSI) read range on metal — outperforming conventional on-metal labels of similar size.
The optimised design ensures consistent read/write functionality even in environments with interference, moving assets or densely packed metal equipment.
Rated to IP68, the tag withstands moisture, mud, oils, chemicals and temperature swings from –30°C to +70°C.
This makes it ideal for supply chain operations, manufacturing lines, asset management, industrial maintenance, returnable metal assets and other long-term tracking scenarios.
Key Features
- High-performance on-metal design — stable UHF performance on metallic surfaces
- Flexible installation — 3M adhesive backing, direct adhesion or screw/rivet mounting
- Long read range — up to 12 m (FCC) / 10 m (ETSI) using fixed readers
- Rugged PC industrial housing — impact-resistant 10.5 mm casing
- Dual 5 mm screw holes for permanent attachment to metal surfaces
- Supports ISO 18000-6C / EPC Class 1 Gen2
- Ready for harsh outdoor environments — IP68 waterproof & dustproof
- Wide temperature tolerance — –30°C to +70°C
- Custom printing & encoding — logo, EPC, serials, barcodes, pre-programming
Specifications
| Dimensions | 89 × 25 × 10.5 mm |
| Chip | Impinj Monza R6-P |
| Protocol | EPC Class 1 Gen 2; ISO/IEC 18000-6C |
| Frequency | 840–940 MHz (Global UHF) |
| Memory | EPC 128 bits; User 64 bits; TID 96 bits |
| Material | PC Industrial Plastic |
| Mounting Options | 3M Adhesive / Direct Adhesion / Screw or Rivet Mounting |
| Hole Size | 5 mm × 2 |
| Read Range (Fixed) | 12 m (US 902–928 MHz); 10 m (EU 865–868 MHz) |
| Read Range (Handheld) | 6 m (US); 5 m (EU) |
| IP Rating | IP68 |
| Operating Temperature | –30°C to +70°C |
| Storage Temperature | –30°C to +70°C |
| Certifications | CE, RoHS, REACH |
| Warranty | 1 Year |
| Customisation | Printing, laser marking, encoding, barcodes/QR, EPC serialisation |
This screw-mount version is ideal for industrial tools, steel infrastructure, IT equipment, returnable transport items, warehouse racks, machinery components and any asset that requires permanent, reliable identification directly on metal surfaces.
