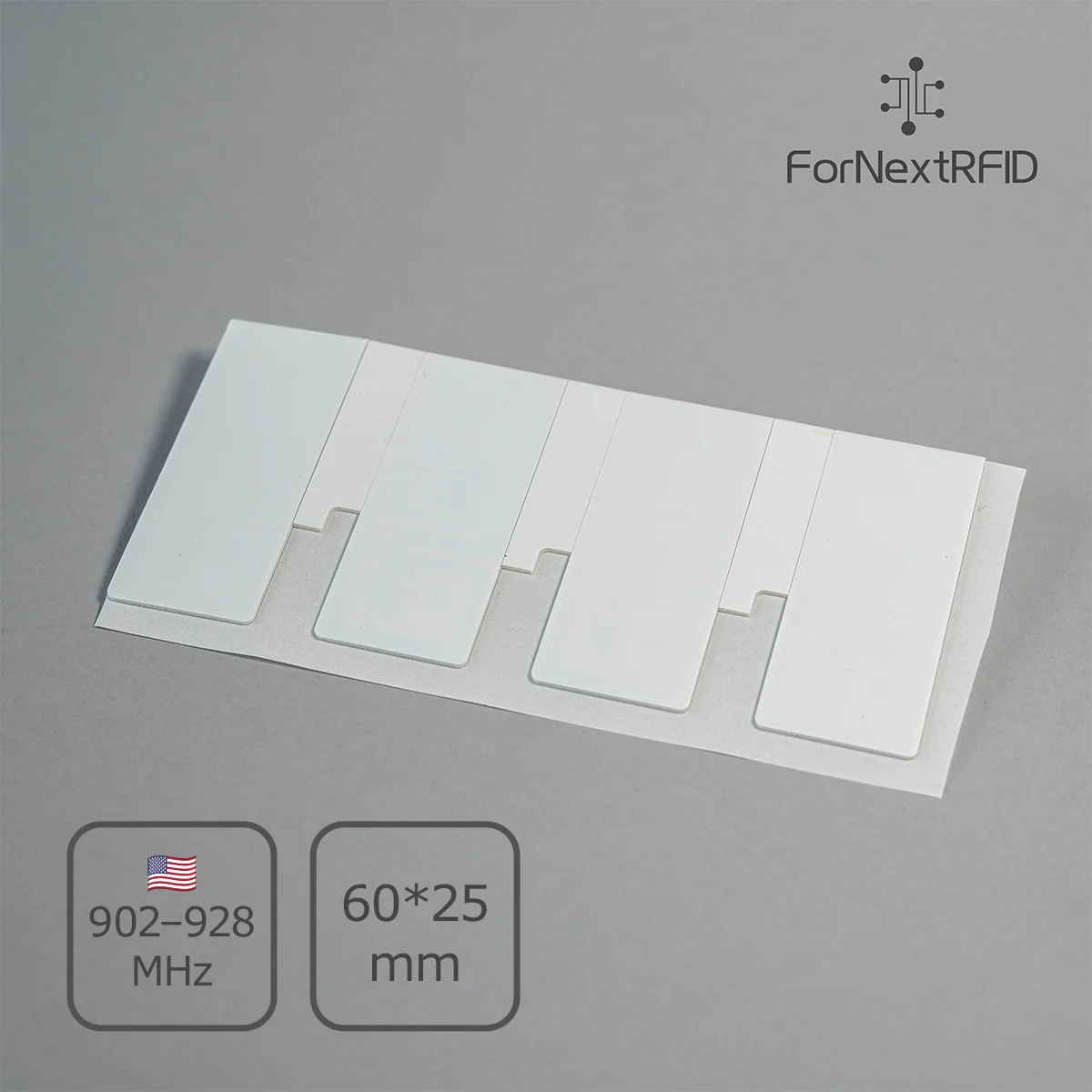

ForNext On-Metal RFID Label – Impinj Monza R6-P 60×25mm
The ForNext 65×25mm on-metal RFID label is a high-performance tag designed for reliable identification of metallic equipment, tools, shelves and industrial assets.
Optimised exclusively for the 902-928 MHz (FCC) band, the tag delivers stable and accurate reading in European deployments where precise frequency tuning is essential.
Constructed using a PET–aluminium–foam composite and powered by the Impinj Monza R6-P chip, it offers excellent on-metal sensitivity, fast encoding and long-term data retention.
The 60×25 mm footprint provides a stronger read range compared with smaller models, making it suitable for medium and large metal assets that require higher visibility in logistics, warehousing and manufacturing environments.
Specifications
| Dimensions | 60 × 25 × 1 mm |
| Frequency Band | FCC 902–928 MHz（North & South America, Australia, New Zealand） |
| Chip Type | Impinj Monza R6-P |
| Material | PET / Aluminium Foil / Foam |
| IP Rating | IP68 |
| Read Range (FCC) | Up to 8.0 m on metal |
| Working Temperature | −40 to +85 °C |
| Humidity | 50 ± 15% RH |
| Installation | Adhesive (industrial high-bond tape) |
| Memory | User: 32/64 bits; EPC: 128 bits; TID: 48 bits |
| Re-write Cycles | 100,000+ |
| Data Retention | > 10 years |
| Printer Compatibility | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Applications | Metallic container tracking Equipment & industrial device tracking Warehouse shelf identification Automotive components IT asset management General metallic asset tagging |
Key Features
- FCC-tuned on-metal label engineered for stable performance at 902-928 MHz
- Larger 60×25 mm footprint delivers stronger read range for medium/large metal assets
- Up to 8 m read distance on metal with fixed readers (FCC)
- Durable PET–aluminium–foam structure with IP68 environmental protection
- Powered by Impinj Monza R6-P for high sensitivity, fast encoding and robust performance
- Industrial-grade adhesive for secure attachment on flat or slightly curved metal surfaces
- Ideal for shelves, containers, machinery, automotive parts and IT equipment
- Compliant with ISO/IEC 18000-6C (EPC Class 1 Gen 2)
