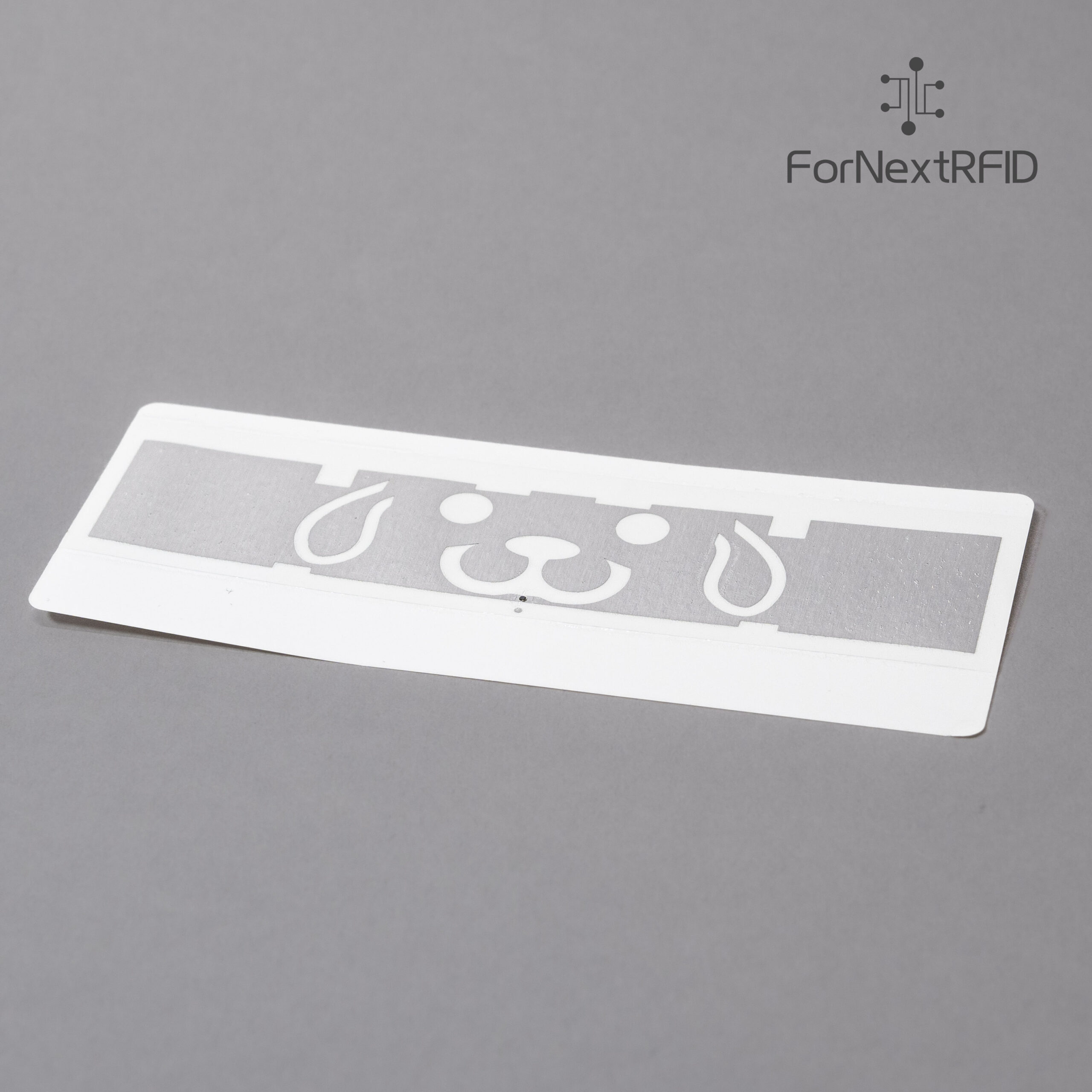

Tamper-Evident Windshield RFID Label UHF 98×40mm | U8
The ForNext tamper-evident UHF windshield label is a long-range vehicle identification tag designed for tolling, parking control, fleet management, gated community access and asset tracking.
Built with the U8 IC and a security-cut tamper-evident structure, the tag will self-destroy when removed, preventing reuse and ensuring secure, one-time attachment on windshields or smooth surfaces.
Its waterproof construction and optimised 98×40mm antenna deliver exceptional read performance of up to 15 metres under FCC frequency (12-15m 860–960 MHz), making it suitable for high-speed lanes, large parking areas and industrial environments.
Key Features
- Tamper-evident security-cut design — label breaks when removed to prevent re-attachment or misuse
- Long read range — up to 12-15 m using fixed readers
- U8 chip for strong sensitivity and robust EPC Gen2 performance
- Waterproof & weather-resistant — ideal for windshields and outdoor use
- Supports EPC Class 1 Gen 2 / ISO 18000-6C
- Available with coated paper, PET or synthetic face materials
- Custom encoding, printing and serialisation available
Specifications
| Dimensions | 98 × 40 mm or Customized |
| Chip | U8 |
| Protocol | EPC Class 1 Gen 2; ISO/IEC 18000-6C |
| Frequency | 860–960 MHz (FCC) |
| Memory | User: 32/64 bits; EPC: 128 bits; TID: 48 bits |
| Material | Coated paper / PET / synthetic material |
| Structure | Tamper-evident security-cut |
| Read Range | 12 – 15 m (fixed reader) |
| Installation | Adhesive — one-time application (non-removable) |
| Durability | Waterproof / weatherproof |
| Data Storage | Up to 10 years |
| Customisation | Printing, encoding, QR/Barcode, numbering, pre-programming |
Perfect for vehicle identification, parking access control, tolling, fleet tracking, and scenarios requiring secure one-time installation.
