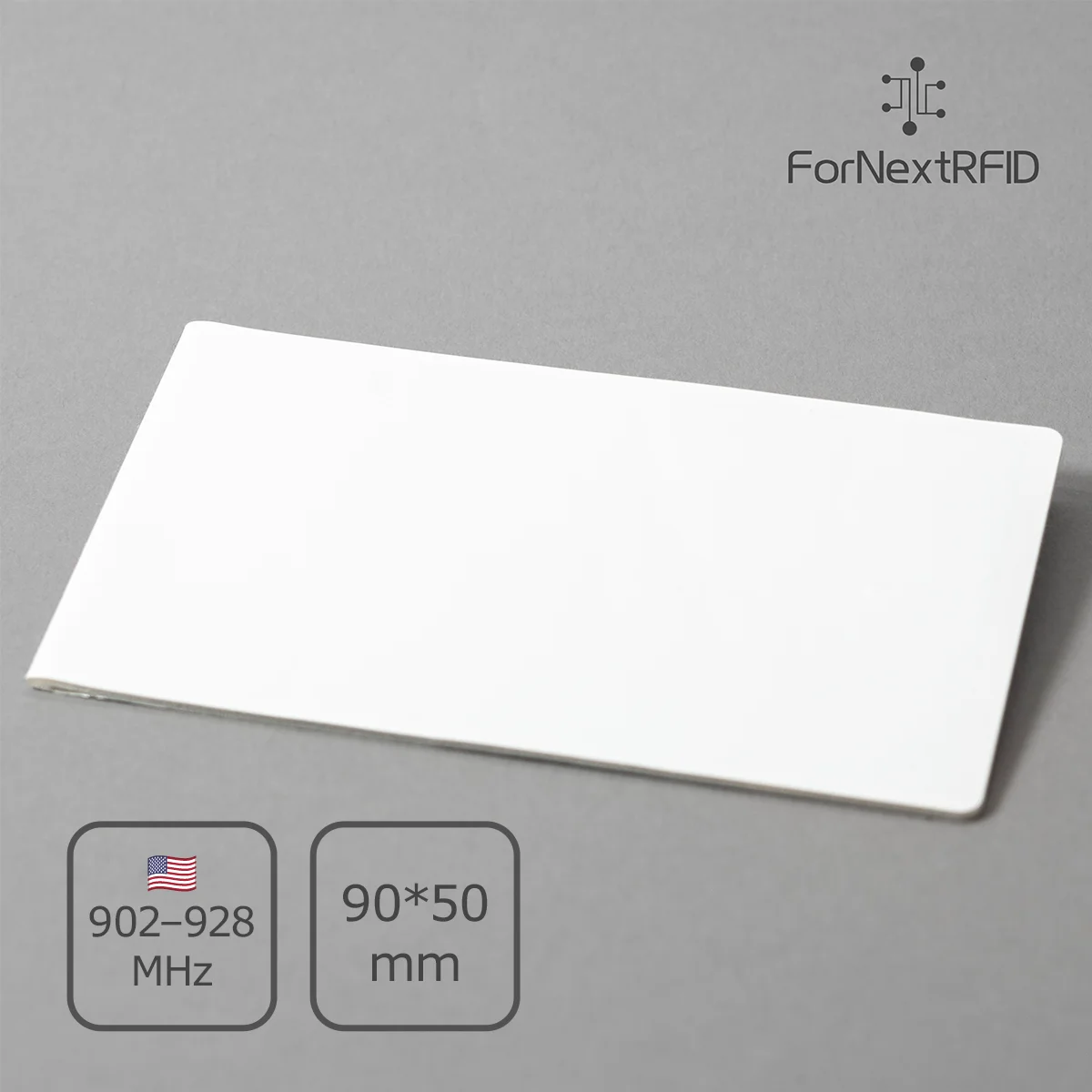

ForNext FCC On-Metal RFID Label 90×50mm (NXP UCODE 8)
The ForNext 80×40mm FCC on-metal UHF label is a high-sensitivity flexible tag designed for metallic assets, tools, IT equipment and industrial tracking.
Engineered specifically for the 902–928 MHz FCC band, it offers long read distance, stable RF performance and strong metal-surface adaptation across logistics, manufacturing and warehouse environments.
Built with a PET–aluminium–foam composite structure, the label conforms to curved, uneven or irregular metal surfaces while maintaining excellent RF efficiency.
Powered by the NXP UCODE 8 IC, it provides reliable EPC memory, fast inventory performance and dependable identification for high-value assets.
With durable construction, long service life and 100% inspection, it is suitable for enterprise IT asset tracking, tool management, equipment lifecycle management and other high-reliability applications.
Specifications
| Dimensions | 90 × 50 × 1.35 mm |
| Chip Type | NXP UCODE 8 |
| Operating Frequency | 902–928 MHz (FCC) |
| Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen2 |
| EPC Memory | 128 Bits |
| User Memory | 0 Bits |
| TID | 96 Bits (Read Only) |
| Read Range | 12–14 m on metal (fixed reader), 6–8 m in air |
| Material | PET + Aluminium Antenna + Foam |
| Installation | High-performance adhesive bonding |
| Operating Temperature | −40°C to +85°C |
| Storage Environment | 23°C ±3°C / 50% ±10% RH |
| Data Storage | 10 years |
| Packaging | Roll 76.2mm core, outer diameter < 220mm, 200 pcs/roll |
Key Features
- Optimised for FCC 902–928 MHz (US) deployments
- Flexible on-metal structure suitable for curved or uneven assets
- Long read range: up to 14 m on metal
- Built on NXP UCODE 8 for fast, reliable EPC inventory
- Durable PET–aluminium–foam composite design
- Strong adhesive for long-term industrial attachment
- Ideal for IT assets, tools, equipment, machinery and warehouse items
