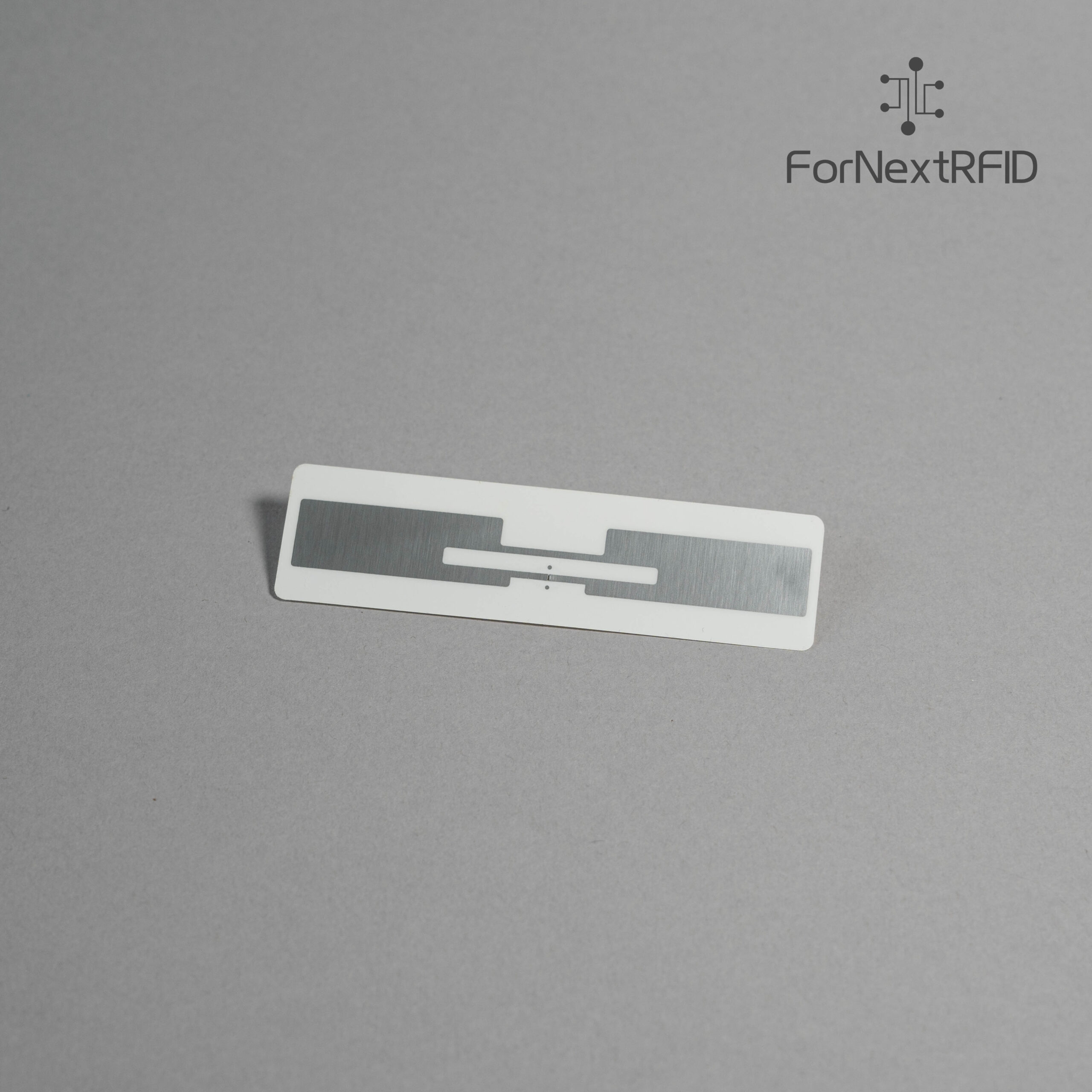

ForNext UHF On-Liquid RFID Label 73×20mm — Designed for Bottles & Moist Environments
The ForNext 73×20mm UHF On-Liquid RFID Label is purpose-built for products where ordinary UHF tags suffer performance loss — such as glass bottles, liquids, cosmetics, personal care items, pharmaceuticals and moist packaging.
Its antenna structure is specifically tuned to overcome detuning caused by water and high-moisture contents.
Combined with the advanced NXP UCODE® 8 chip, it delivers:
• Faster and more accurate inventory counting
• Stronger read sensitivity on curved or irregular surfaces
• Highly stable performance around liquid-filled containers
• Improved asset visibility across retail, FMCG, beauty, medical and warehouse environments
Constructed using PET material and etched aluminium, the label offers excellent resistance to chemicals, abrasion and humidity, while maintaining long-term adhesion even in demanding supply-chain conditions.
Specifications
| Dimensions | 73 × 20 mm |
| Chip Type | NXP UCODE 8 |
| Protocol | ISO/IEC 18000-6C, EPC Class 1 Gen2 |
| Operating Frequency | 860–960 MHz (Global) |
| EPC Memory | 128 bits |
| TID | 96 bits |
| User Memory | 0 bits |
| Material | PET (50 µm) + Etched Aluminium |
| Operating Mode | Passive |
| Environmental | -20°C to +50°C, 20–80% RH |
| ESD Protection | Max 2000V (HBM) |
| Attachment | Strong adhesive backing |
| Packaging | 2500 pcs/roll, vacuum-sealed ESD bag |
Key Features
- Special tuning for liquid-filled bottles, glass jars and moist packaging
- Stable long-range readability where standard UHF labels cannot perform
- Powered by NXP UCODE 8 for fast scanning and high data reliability
- Strong PET structure with excellent chemical and moisture resistance
- Reliable on curved and irregular surfaces (cosmetics, beverages, healthcare)
- Ideal for FMCG tracking, retail inventory, cosmetics supply chain and pharmaceuticals
