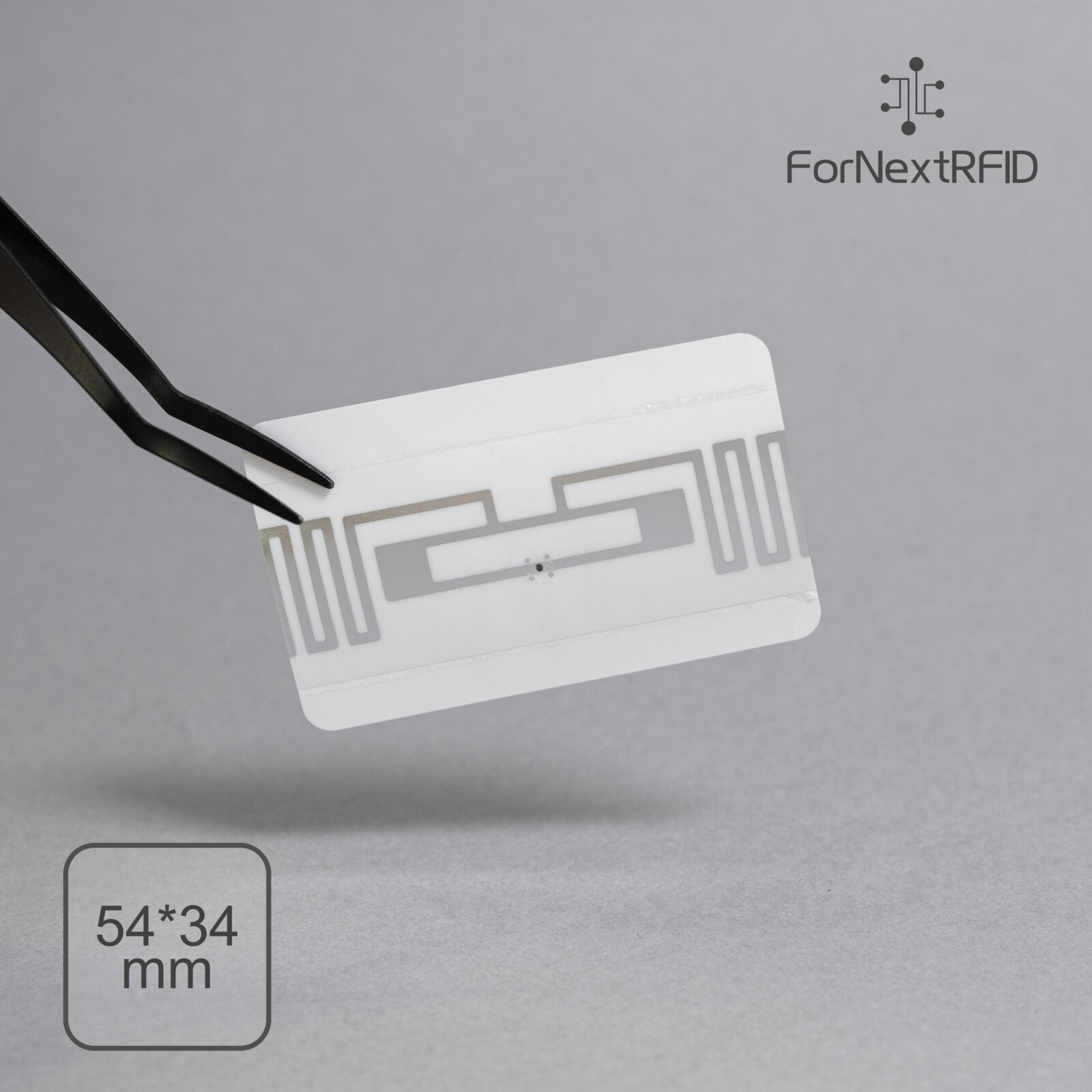

Anti-Liquid UHF RFID Label 54×34mm | NXP UCODE® 9
The ForNext 54×34mm anti-liquid UHF RFID label is engineered specifically for applications involving plastic containers with liquid contents.
By optimising antenna design and label structure for plastic substrates, this tag maintains strong RF performance even in environments where liquids typically degrade RFID readability.
This label is well suited for pharmaceutical management, medical inventory control and laboratory workflows, including plastic medicine bottles, reagent containers and liquid-filled plastic test tubes.
It enables accurate identification and tracking throughout storage, handling and usage processes.
Powered by the NXP UCODE® 9 chip, the label provides reliable EPC Gen2v2 performance with a 96-bit EPC memory.
The streamlined memory structure makes it ideal for high-speed item identification, inventory control and system-driven data management where user memory is not required.
With its larger 54 × 34 mm antenna format, the label delivers excellent read distance and stability on plastic containers filled with liquids, outperforming smaller standard labels in challenging environments.
Dimensions, face materials and printing can all be customised to meet specific project requirements.
Key Features
- Anti-liquid design optimised for plastic bottles and liquid-filled containers
- NXP UCODE® 9 chip with strong sensitivity and stable EPC Gen2v2 performance
- Excellent read range on plastic containers compared with standard UHF labels
- Ideal for pharmaceutical bottles, medical supplies and laboratory test tubes
- Larger 54×34 mm format improves RF stability in liquid-adjacent environments
- Supports custom sizes, printing, EPC encoding and roll formats
Specifications
| Dimensions | 54 × 34 mm (custom sizes available) |
| Application Surface | Plastic bottles, plastic test tubes, liquid containers |
| Chip | NXP UCODE® 9 |
| Protocol | ISO/IEC 18000-6C; EPCglobal Class 1 Gen2v2 |
| Frequency | UHF 860–960 MHz (Global) |
| EPC Memory | 96 bits |
| User Memory | 0 bits |
| Face Material | Coated paper (standard); PET / PP synthetic paper / thermal paper optional |
| Installation | Self-adhesive, anti-liquid optimised |
| Customisation | Printing, EPC encoding, serialisation, size and roll format |
This 54×34mm anti-liquid RFID label provides a dependable solution for tracking plastic containers in medical, pharmaceutical and laboratory environments where liquid interference is a critical concern.
