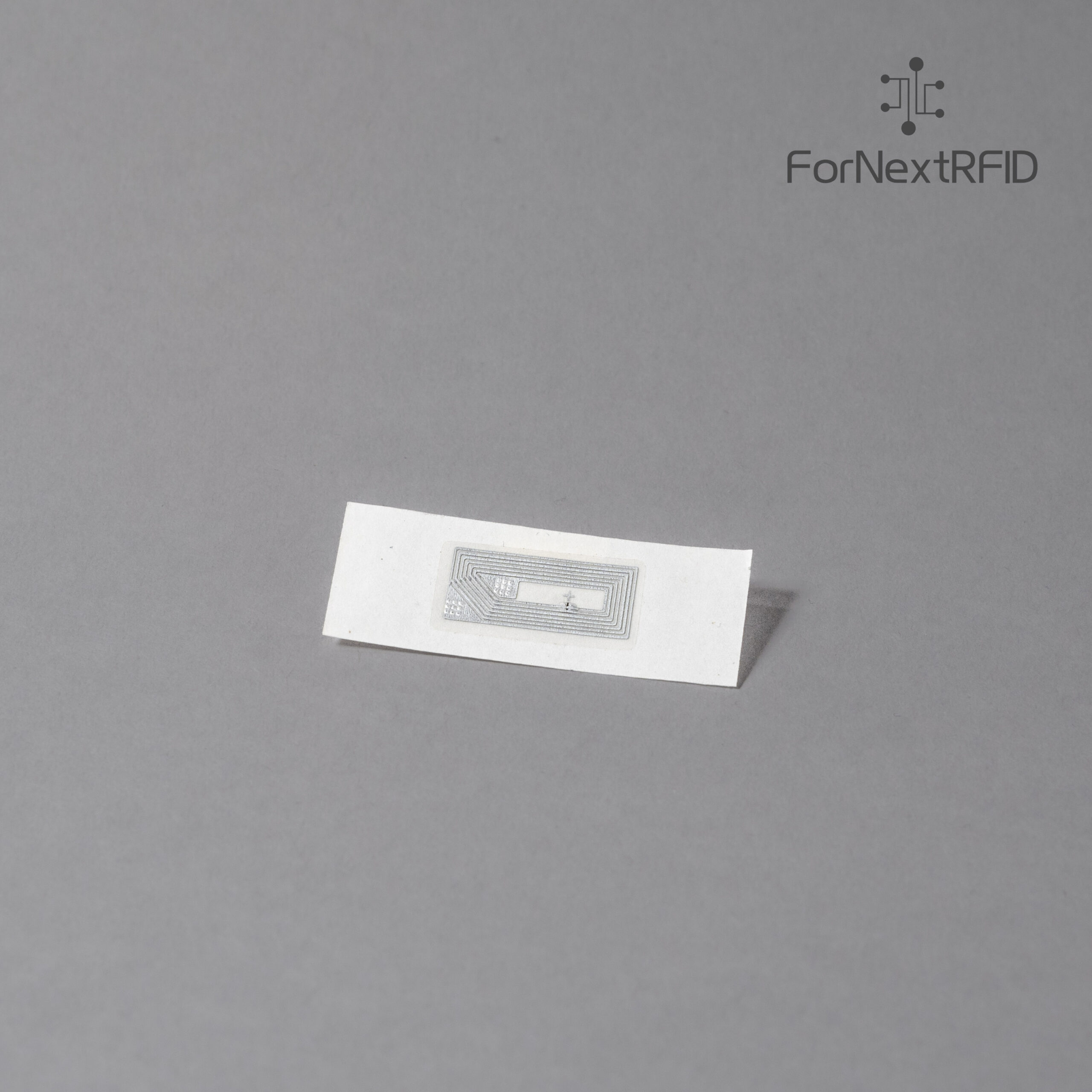

NFC Label NXP NTAG® 213 | ISO14443A | 21 x 11mm
The ForNext 21 × 11 mm NFC label is an ultra-compact tag powered by the NXP NTAG® 213 chip. Operating at 13.56 MHz and compliant with ISO/IEC 14443A and NFC Forum Type 2, it supports reliable communication with most NFC-enabled smartphones and compatible NFC readers.
With 144 bytes of user memory, the label can store short NDEF records such as URLs, product information, serialised IDs, batch references and digital workflow links.
Its small footprint makes it suitable for item-level applications where available space is limited. Face materials can be selected to suit the application, including paper, PET and other synthetic materials, with pressure-sensitive adhesive options available for packaging, documents, plastic components, cards and other non-metallic surfaces.
Common applications include:
- Smart packaging – connect small products and packaging to digital information, registration pages or after-sales support.
- Product identification – assign unique NFC identifiers to components, accessories, samples and compact retail items.
- Interactive marketing – add tap-to-open digital content to cards, invitations, gifts, brochures and promotional materials.
- Asset and workflow identification – support check-in, inspection, maintenance and internal tracking processes for small items.
Specifications
| Product Name | NFC Label 21x11mm NXP NTAG® 213 | ISO14443A NFC Type 2 |
| Label Size | 21 × 11 mm |
| Chip | NXP NTAG® 213 |
| Protocol | ISO/IEC 14443A, NFC Forum Type 2 |
| Frequency | 13.56 MHz |
| User Memory | 144 bytes read/write user memory |
| Total Memory | 180 bytes EEPROM |
| UID | Factory-programmed 7-byte unique identifier |
| Data Transfer Rate | 106 kbit/s |
| Anti-Collision | Supported |
| Face Material | Paper, PET or other synthetic materials |
| Adhesive | Pressure-sensitive adhesive, selected according to the application |
| Work Mode | Passive, no battery required |
| Typical Read Range | Approximately 0–3 cm, depending on the reader, antenna orientation and application environment |
| Recommended Surfaces | Paper, cardboard, plastic, glass and other non-metallic surfaces |
| Customisation | Custom face material, printing, NDEF or URL encoding, UID matching and data serialisation |
This compact 21 × 11 mm NXP NTAG® 213 NFC label is suitable for smart packaging, product identification, interactive marketing and small-item NFC applications where conventional label sizes are too large.
For use directly on metal, a specialist on-metal NFC construction is required.
