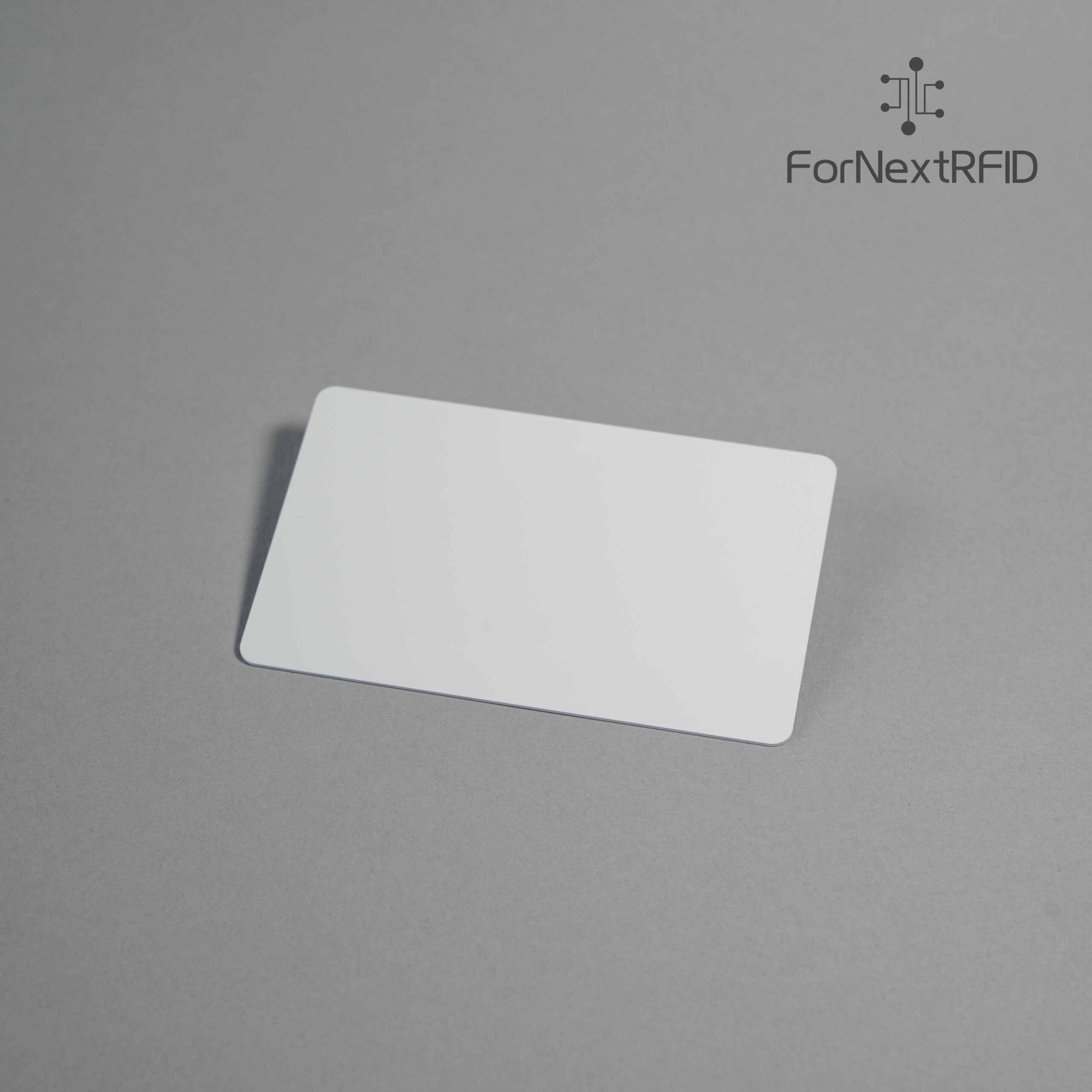

ForNext Dual-Frequency PVC Card – U9 (UHF) + MIFARE Classic 1K (HF)
The ForNext dual-frequency PVC card integrates two independent RFID technologies into a single ISO-sized card
U9 UHF chip + MIFARE Classic 1K HF chip for secure NFC-based access.
The UHF side enables 5–8 metre read range using fixed readers or gateways, ideal for movement tracking, parking control and warehouse automation.
Meanwhile, the HF/NFC side supports tap-based access control, staff ID, membership, ticketing and mobile device interaction.
This hybrid structure allows one card to operate across two different systems, reducing the need for multiple cards and improving overall operational efficiency.
Specifications
| Card Size | 86 × 54 mm |
| Chip (UHF) | Impinj U9 |
| Chip (HF) | MIFARE Classic 1K (NXP) |
| Protocols | UHF: EPC Class 1 Gen 2 / ISO 18000-6C HF: ISO 14443A |
| Frequencies | UHF: 860–960 MHz HF: 13.56 MHz |
| Memory | M1 HF: 1 KB EEPROM UHF memory varies by EPC encoding |
| Material | PVC / Composite PVC |
| Read Range (UHF) | 5 – 8 m (fixed reader) |
| Read Range (HF) | 0 – 10 cm (NFC) |
| Printing Options | CMYK full print, UV, laser engraving, barcodes, QR codes, serials |
| Durability | Water-resistant; suitable for daily use |
| Customisation | Printing, EPC encoding, UID programming, personalisation |
This dual-frequency U9 + M1 card is ideal for organisations requiring both secure access control and long-range tracking — including corporate campuses, warehouses, hospitals, factories, universities, parking facilities, visitor management and event operation systems.
