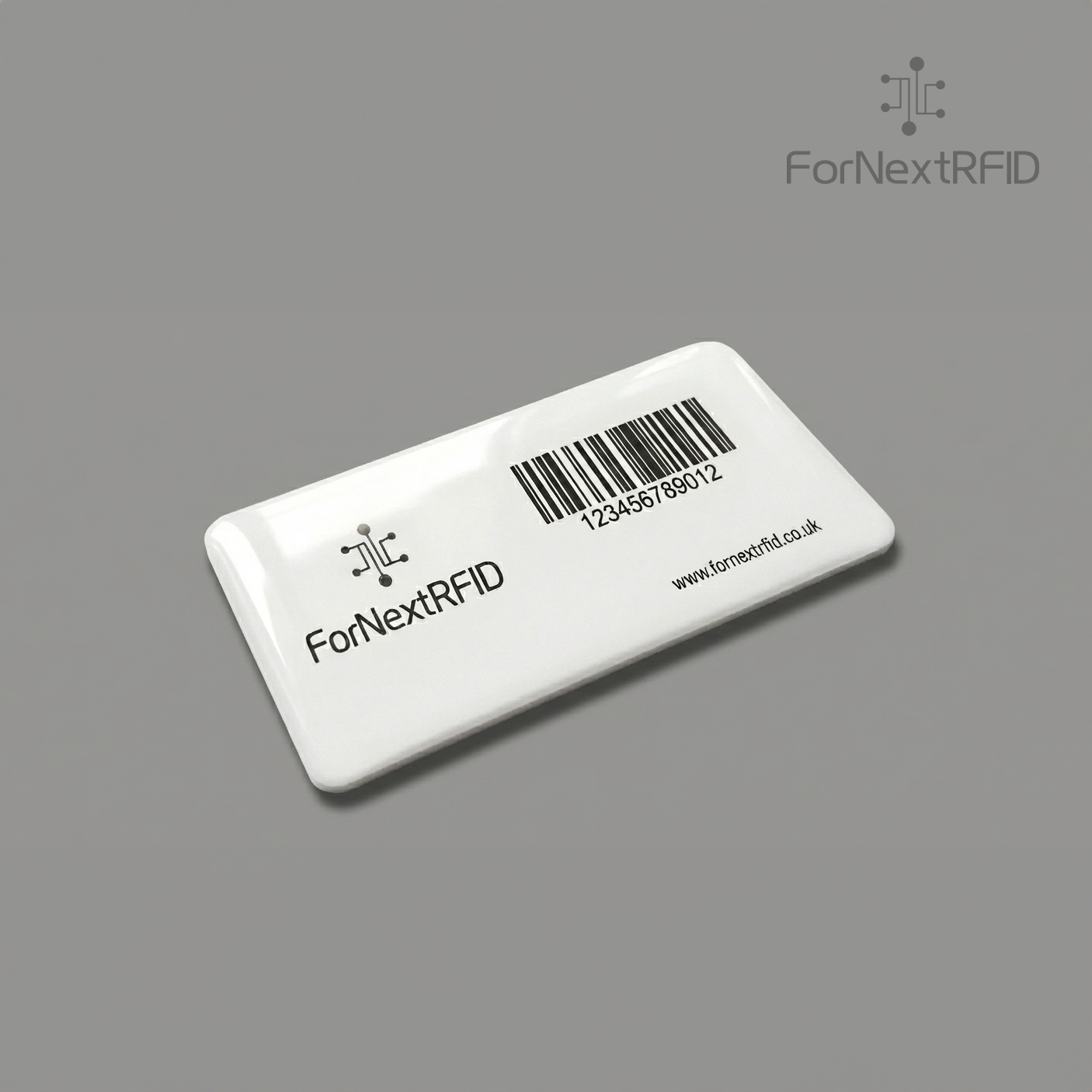

Dual-Frequency Epoxy On-Metal RFID Tag 80×50mm | UHF + HF 13.56 MHz
The ForNext 80×50mm Dual-Frequency Epoxy On-Metal Tag is designed for metal assets that require both long-range UHF tracking and close-range HF interaction in a single label.
Combining a UHF EPC Gen2 antenna for 5–7 metre read range with a 13.56 MHz MIFARE 1K (M1) inlay, this tag enables warehouse inventory, asset audits and local tap-based functions such as identification, access control or service logging.
The tag uses an acrylic/PVC on-metal structure with an anti-metal layer and 3M adhesive, providing strong adhesion and stable performance on metal cabinets, machinery, tools, racks and IT equipment.
The top surface is fully printable for logos, serials and barcodes, while an optional domed epoxy coating adds a glossy, durable finish for branding and protection against abrasion, moisture and handling.
By combining UHF and HF in one form factor, integrators can support both long-range reads via fixed or handheld UHF readers and close-range HF reads via desktop readers or existing MIFARE infrastructure.
This makes the tag particularly suited to projects where the same physical item must be visible in backend systems while also supporting front-line tap actions by operators, technicians or end users.
Supplied on sheets or in small batches, the 80×50mm dual-frequency tag is a flexible solution for pilot deployments, industrial equipment programmes and branded metal assets requiring dual technology, visual customisation and metal-compatible construction.
Key Features
- Dual-frequency design — UHF EPC Gen2 for long-range reads plus HF MIFARE 1K for tap-based interaction
- On-metal construction — acrylic/PVC structure with anti-metal layer for stable metal-surface performance
- 5–7 m UHF read range on metal with fixed readers
- Printable surface — supports logos, serial numbers, barcodes and QR codes
- Optional epoxy coating — glossy domed finish for extra protection and premium appearance
- 3M adhesive backing for fast, clean installation on flat metal surfaces
- UHF IC options — Alien Higgs, Monza 3/4D/4QT/R6/R6-P, Impinj M730/M750, NXP U8/U9 etc.
- HF side based on MIFARE Classic 1K (ISO/IEC 14443A), compatible with existing M1 infrastructures
- Ideal for equipment tracking, service logs, access control and branded hardware assets
- Custom printing & encoding — EPC programming, MIFARE personalisation, serialisation
Specifications
| Dimensions | 80 × 50 mm |
| Frequencies | UHF 860–960 MHz + HF 13.56 MHz |
| HF Chip | MIFARE Classic 1K (M1), ISO/IEC 14443A |
| UHF IC Options | NXP UCODE U8, U9;Monza R6-P; Impinj M730, M750, etc. |
| UHF Interface | EPC Class 1 Gen2 / ISO/IEC 18000-6C |
| UHF Read Range | Approx. 5–7 m on metal (with fixed reader) |
| Construction | Acrylic / PVC on-metal structure with anti-metal layer and 3M adhesive |
| Surface Finish | Printable PVC face; optional domed epoxy coating |
| Mounting Method | 3M adhesive (for flat metal surfaces) |
| Colour | White printable surface (custom artwork on request) |
| Supplied Form | Individual pieces or sheets |
| Customisation | Logo printing, EPC encoding, MIFARE programming, serialisation, barcodes/QR |
This 80×50mm dual-frequency epoxy on-metal tag is ideal for cabinets, equipment, rental assets, tool management and branded metal devices requiring both long-range UHF visibility and close-range MIFARE tap interaction in a single label.
