Diagnosing Common RFID Reader Configuration Issues

RFID systems depend heavily on the correct configuration of readers to ensure accurate and reliable tag detection. Misconfiguration can lead to inconsistent readings, reduced operational efficiency, and increased troubleshooting time. This article focuses on diagnosing common RFID reader configuration issues encountered in industrial, warehouse, and asset tracking environments, offering practical guidance for system integrators, warehouse managers, and procurement teams. It covers environmental considerations, sensitivity settings, tag compatibility, placement strategies, and documentation best practices to support optimal RFID system performance.

Common RFID Reader Configuration Challenges

RFID readers can encounter a range of configuration challenges that impact their effectiveness. Typical issues include:

• Incorrect sensitivity settings: Sensitivity too high can cause false positives; too low can miss tags.
• Environmental interference: Physical obstructions, metallic surfaces, and electromagnetic noise from nearby electronics.
• Improper reader placement: Suboptimal distance, angle, or height relative to tags.
• Incompatibility with tag types: Variations in tag frequency, antenna design, and substrate materials.
• Firmware or software issues: Outdated reader firmware can cause erratic behavior or reduce feature sets.

Addressing these factors requires a structured diagnostic approach to isolate and resolve the root causes. Understanding the interplay between reader settings and environmental variables is essential for maintaining a reliable RFID system.

Step-by-Step Diagnostic Approach for RFID Reader Issues

Systematic troubleshooting helps identify whether configuration errors, environmental factors, or hardware limitations are responsible for poor RFID reader performance. The following steps are recommended:

1. Survey the environment: Check for physical obstructions such as shelving, walls, or machinery that may block or reflect RFID signals. Note any nearby electronic devices that could cause electromagnetic interference.
2. Verify reader sensitivity settings: Adjust sensitivity incrementally. High sensitivity may detect unintended tags or noise, while low sensitivity reduces read range. Document each setting and its effect on read accuracy.
3. Test tag compatibility: Confirm that the reader frequency (typically UHF 860-960 MHz or HF 13.56 MHz) matches the tags in use. Different materials, such as metal or liquid, affect tag readability and may require specialised tags such as on-metal RFID labels.
4. Evaluate reader placement: Experiment with different distances and angles relative to the tags. Avoid placing readers too close to metal surfaces or in locations with heavy radio frequency noise.
5. Check firmware and software versions: Ensure the reader is running the latest stable firmware. Updates can fix bugs and improve performance.
6. Conduct controlled tests: Use known tags in a controlled setting to isolate variables. Incrementally change one parameter at a time (e.g., distance, angle, power level) and record results.

Documenting each step and its outcome facilitates future troubleshooting and helps identify consistent patterns that affect performance.

Key Considerations When Adjusting Sensitivity Settings

Sensitivity settings determine how strongly the RFID reader’s antenna responds to tag signals. Adjusting these settings requires balancing detection range and noise rejection. Practical considerations include:

• Environmental noise: High sensitivity may cause the reader to pick up signals from unintended sources, such as adjacent readers or electronic devices.
• Tag diversity: Different RFID tags vary in antenna design, chip sensitivity, and substrate materials. For example, UHF RFID labels designed for logistics may perform differently than industrial-grade tags for asset tracking.
• Material effects: Tags on metal or liquid surfaces require lower sensitivity or specialised tags to avoid signal distortion.
• Trial and error: Finding the optimal sensitivity is iterative. Changes should be tested under typical operating conditions and with the full range of tags used in the system.

Procurement teams should discuss sensitivity requirements with suppliers, specifying the types of tags, materials, and environmental conditions expected. ForNext RFID offers custom tag solutions and technical support to help calibrate readers for specific applications.

Environmental Factors Affecting RFID Reader Performance

Environmental conditions significantly influence RFID system reliability. Key factors include:

• Physical obstructions: Metal shelving, dense packaging, and walls can absorb or reflect RFID signals, reducing read range.
• Electromagnetic interference (EMI): Nearby machinery, wireless devices, or power lines can introduce noise.
• Temperature and humidity: Extreme or fluctuating conditions can affect tag materials and reader electronics.
• Dynamic environments: Changes over time, such as adding new equipment or rearranging storage, can alter signal paths.

Mitigation strategies include repositioning readers, using shielding materials, selecting tags designed for harsh environments (e.g., high-temperature RFID labels), and implementing periodic system reviews. Continuous monitoring—whether manual or automated—helps detect performance degradation linked to environmental changes.

Best Practices for RFID Reader Placement

Proper reader placement is fundamental for maximising read accuracy and throughput. Consider these guidelines:

• Maintain clear line of sight: While RFID can penetrate some materials, minimizing obstructions improves consistency.
• Distance and angle: Position readers within the recommended read range for the tags used. Angling the reader antenna to face tags directly often yields better results.
• Avoid metallic interference: Metal surfaces near readers can detune antennas and cause signal reflection. Use specialised on-metal tags or increase separation distance.
• Height considerations: Adjust reader height to align with tag placement, especially in conveyor or pallet scanning scenarios.
• Multiple readers: When deploying multiple readers in proximity, configure power levels and antenna patterns to minimise cross-interference.

Regularly reviewing reader placement is advisable, particularly in environments with frequent layout changes. Industry standards such as EPCglobal guidelines provide additional placement recommendations.

Additional Technical Details and Practical Examples

Understanding the technical nuances behind RFID reader configuration can help procurement and operations teams make informed decisions. Here are further considerations and real-world examples:

Frequency Bands and Their Implications

RFID readers typically operate in two main frequency bands:

• High Frequency (HF) – 13.56 MHz: Commonly used for access control, library systems, and item-level tagging. HF tags have shorter read ranges (up to 1 meter) and are less affected by liquids or metals but require close proximity.
• Ultra High Frequency (UHF) – 860-960 MHz: Widely used in logistics, asset tracking, and supply chain applications. UHF offers longer read ranges (up to 12 meters or more) but is more sensitive to environmental factors such as metal and liquids.

Choosing the correct reader frequency is critical. For example, a warehouse tracking pallets with UHF tags will need readers with adjustable power output and antenna tuning to handle metal racks and dense packaging. Conversely, a pharmaceutical inventory system might use HF readers and tags to avoid interference from liquid containers.

Antenna Design and Polarisation

Reader antennas come in various designs (linear, circular, patch, panel) and polarisations (linear, circular). The choice affects read reliability:

• Linear polarisation: Offers longer read range but requires tag orientation to be aligned with the antenna.
• Circular polarisation: More forgiving of tag orientation, ideal for environments where tags may be randomly oriented, but typically with a slightly reduced range.

For conveyor belt scanning where tags pass in a fixed orientation, linear polarised antennas may be preferred. In contrast, for handheld readers or portal gates where tag orientation varies, circular polarised antennas improve read consistency.

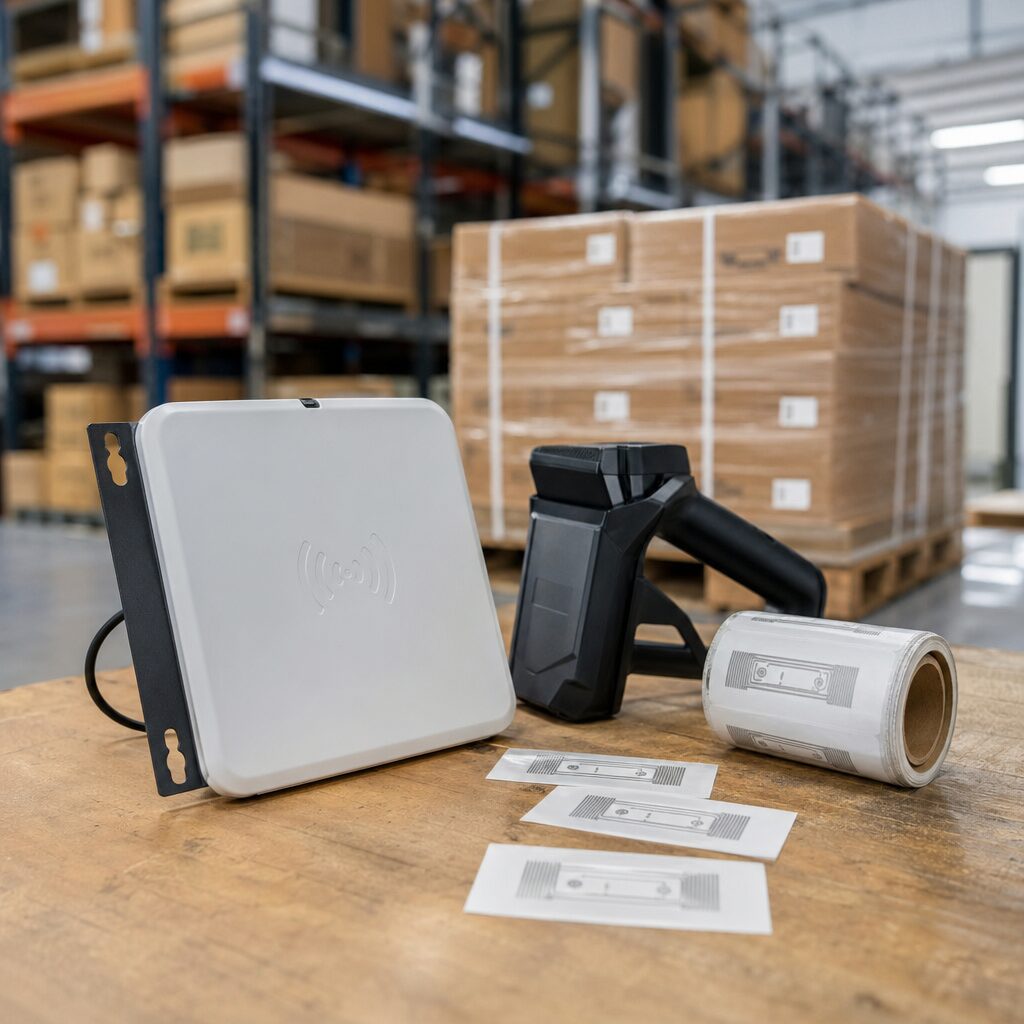

Tag Materials and Surface Conditions

Tag performance depends heavily on the surface to which it is attached. Metal and liquid surfaces can detune antennas and reduce read range. Solutions include:

• On-metal tags: These have a foam or plastic spacer layer to isolate the antenna from metal, maintaining performance.
• Encapsulated tags: Designed for harsh environments, resistant to moisture, chemicals, and temperature extremes.
• Specialised adhesives: For rough, curved, or oily surfaces to ensure tag retention and consistent orientation.

For example, asset tracking in manufacturing plants often requires rugged on-metal tags with durable adhesives, while logistics labels may prioritise thin, flexible tags with strong but removable adhesives.

Encoding and Data Management

Reader configuration also involves encoding tags with relevant data such as unique IDs, batch numbers, or expiry dates. Considerations include:

• Encoding standards: EPCglobal Gen2 is the most common UHF standard, supporting unique electronic product codes and user memory.
• Memory size: Tags vary in user memory capacity, influencing the amount and type of data stored.
• Security features: Password protection, kill commands, and encryption may be needed for sensitive applications.
• Integration with backend systems: Readers must be configured to communicate with warehouse management systems (WMS) or asset management platforms, often via middleware.

Procurement teams should clarify encoding needs upfront to ensure readers and tags support the required data formats and security levels.

Packaging and Handling of Tags

How tags are supplied can affect installation efficiency and system reliability:

• Rolls vs sheets: Labels for automated application often come on rolls compatible with existing labelling machines.
• Pre-encoded tags: Tags can be supplied pre-encoded to reduce onsite programming time and errors.
• Batch traceability: Keeping track of tag batches helps identify quality issues or warranty claims.

ForNext RFID can supply custom-printed, pre-encoded tags on rolls or sheets tailored to your application and installation process.

Case Study: Warehouse Pallet Tracking

A UK-based logistics company experienced intermittent missed reads on pallets moving through a conveyor scanning station. Initial investigation revealed:

• Reader sensitivity was set to maximum, causing false reads from nearby pallets.
• Tags were standard UHF labels placed on metal pallets without isolation.
• Reader antennas were linear polarised but mounted at an angle causing inconsistent tag orientation.

Resolution steps included:

• Reducing sensitivity to a mid-range setting to balance detection and noise.
• Switching to on-metal RFID labels with foam backing to improve tag readability.
• Reorienting antennas to face pallets directly and switching to circular polarised antennas.
• Updating reader firmware to the latest version for improved signal processing.

This resulted in a 30% reduction in missed reads and smoother conveyor throughput. The company documented all changes and worked with their tag supplier for ongoing support.

Documentation and Change Management

Maintaining detailed records of reader configuration changes is critical for troubleshooting and continuous improvement. Effective documentation should include:

• Date and time of changes
• Settings adjusted (e.g., sensitivity level, power output)
• Environmental conditions and layout notes
• Firmware/software versions
• Test results and observations
• Personnel responsible for changes

Using standardized forms or digital logs reduces the risk of missing critical information. Involving multiple team members in documentation can capture diverse insights and facilitate knowledge sharing. Well-maintained records enable faster diagnosis of recurring issues and support supplier discussions when custom solutions or technical assistance are required.

Frequently Asked Questions

What causes inconsistent RFID reader readings?

Inconsistent readings often result from incorrect sensitivity settings, environmental interference, or improper reader placement. Verifying these factors and testing under controlled conditions can identify the root cause.

How do I know if my RFID reader sensitivity is set correctly?

Start with manufacturer recommendations and adjust sensitivity incrementally while monitoring read accuracy. Too high sensitivity may cause false reads; too low may miss tags. Testing with actual tags in the deployment environment is essential.

Can all RFID tags be read by any reader?

No. RFID tags operate at specific frequencies (UHF or HF) and have different antenna designs. Tags designed for metal surfaces or harsh environments may require specialised readers or settings.

How often should I update my RFID reader firmware?

Regular updates are recommended to fix bugs and improve functionality. Check with your reader supplier for update schedules and compatibility with your system.

What documentation is necessary for RFID reader configuration changes?

Document settings changed, environmental conditions, firmware versions, test results, and personnel involved. Consistent records aid troubleshooting and system optimisation.
