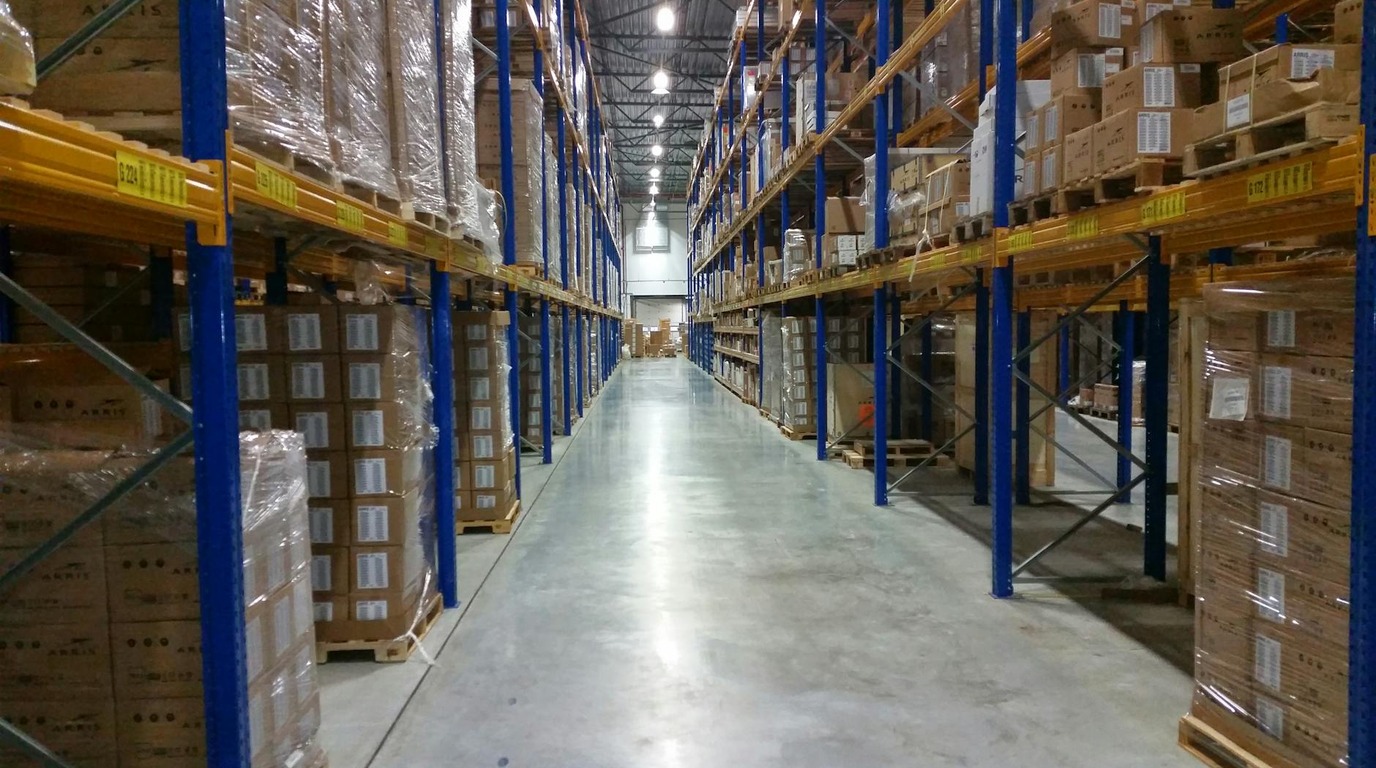

RFID Pallet Tracking Warehouse Guide for High-Rack Storage Efficiency

Choosing the Right RFID Labels for Pallet Tracking

Types of RFID Labels for Pallets and Goods

Selecting the correct RFID label is critical to ensure reliable reads and durability in warehouse environments. Labels fall mainly into two categories:

• Disposable RFID labels for goods: Thin, adhesive labels designed for individual cartons or boxes. These labels are cost-effective and applied directly to goods, often during packing or receiving. They use passive UHF RFID chips such as the Impinj Monza R6 or NXP UCODE 8, which offer high memory capacity and fast read rates.
• Rugged RFID tags for pallets: Larger, more robust tags that can withstand rough handling, moisture, and temperature variations. These often feature reinforced materials and encapsulation meeting environmental durability standards such as IP67 or higher. Common chip choices include the Alien H3 known for its sensitivity and reliability in challenging environments.

For pallets containing liquids, label placement and tag design are crucial. Liquids absorb UHF signals, reducing read range and accuracy. Labels with integrated ferrite backing or specialized antenna designs can mitigate signal attenuation. Applying labels on pallet corners or over void spaces can also improve reads.

Durability and Environmental Considerations

Warehouse environments expose RFID labels to physical stress, chemicals, moisture, temperature fluctuations, and abrasion. Key durability factors to assess in label selection include:

• Material construction: Polyester or synthetic substrates resist tearing and humidity better than paper-based labels.
• Encapsulation: Tags with protective coatings or encapsulation safeguard chips and antennas from dust, water, and impact.
• Adhesive strength: High-tack adhesives ensure labels stay affixed to pallets during transport and storage.
• Temperature tolerance: Labels must withstand typical warehouse temperature ranges, often between -20°C and +50°C, without degradation.
• Compliance with industry durability standards: Look for certifications such as ISO 9001 for manufacturing quality and specific environmental ratings like IP65/IP67 for water and dust resistance.

Choosing labels that meet these criteria significantly reduces replacement costs and scanning failures.

Label Placement Best Practices

Correct label placement ensures consistent reads and reduces interference. Best practices for pallet tracking include:

• Positioning labels on the same side of all pallets to enable single-pass scanning.
• Avoiding placement near metal strapping or pallet edges where signal reflection can cause read errors.
• Applying labels on vertical surfaces or pallet corners rather than flat top surfaces, especially when racks limit direct line of sight.
• Using multiple labels per pallet for redundancy in high-density or complex storage racks.
• Ensuring labels for goods inside pallets are accessible if separate scanning is required.

Following these guidelines improves read rates and data accuracy, critical for high-volume operations.

RFID Hardware Setup for High-Rack Warehouse Pallet Tracking

Fixed Readers and Antenna Placement Strategies

Fixed RFID readers form the backbone of warehouse pallet tracking by monitoring key warehouse zones such as dock doors, aisle entries, and conveyor points. For high-rack warehouses, careful antenna placement is essential to achieve reliable reads at heights of 16 metres or more.

Strategies include:

• Mounting multiple fixed readers and antennas at different heights and angles to cover both pallet fronts and sides.
• Using circularly polarised antennas to improve tag orientation tolerance.
• Employing directional antennas to focus read zones and reduce cross-reading adjacent aisles.
• Installing antennas at pallet transfer points such as loading docks and picking stations for real-time monitoring.

Typical fixed reader models used in warehouses include Impinj Speedway R420 and Zebra FX9600, which support multiple antennas and offer high throughput for bulk reads.

Forklift-Mounted Antennas and Handheld Readers

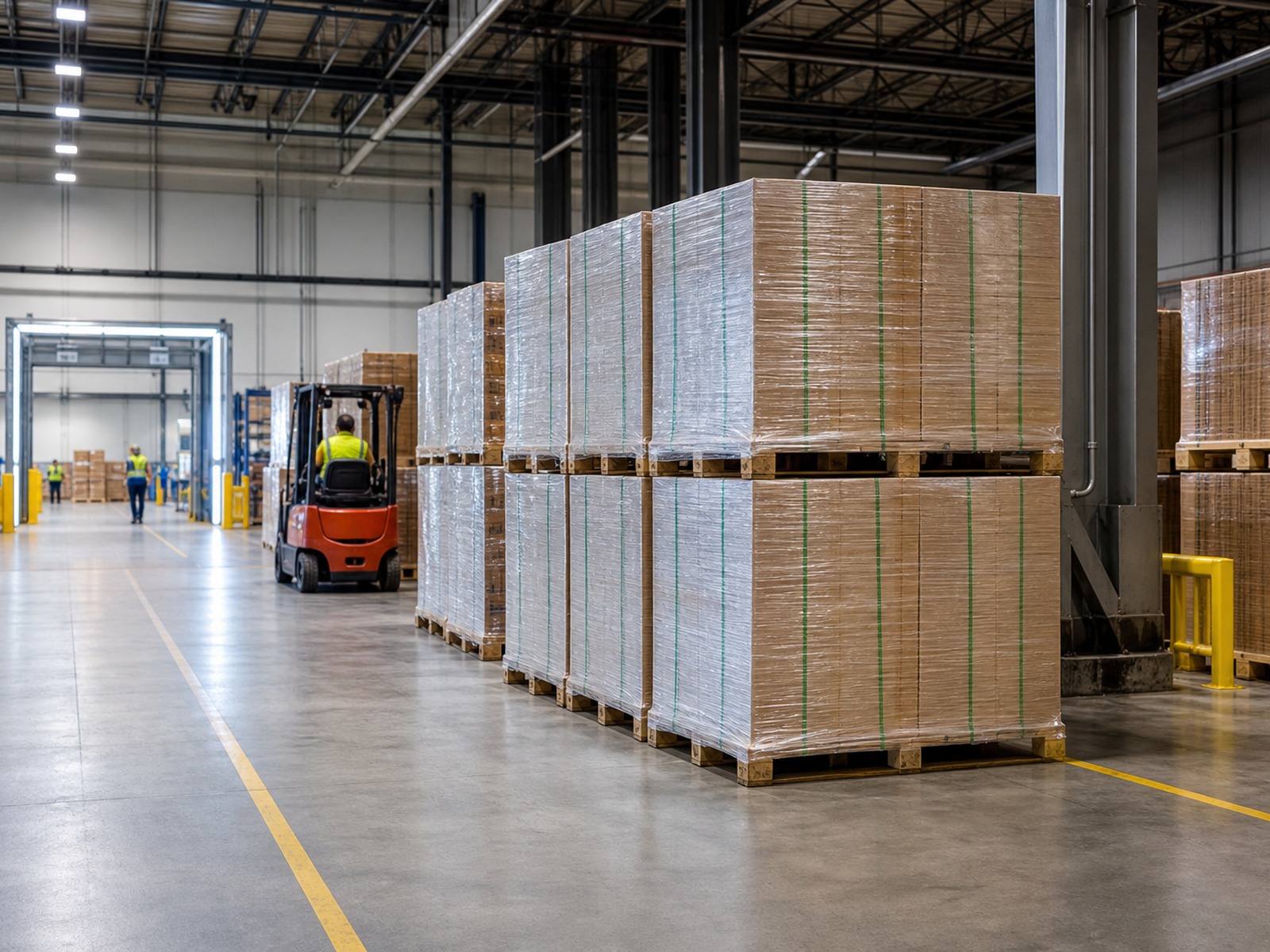

Forklift-mounted RFID readers equipped with antennas provide dynamic scanning capability while transporting pallets, enabling location updates during movement. Key advantages:

• Close-range scanning: Antennas mounted on forklifts scan pallets as they are moved, filling coverage gaps in fixed reader zones.
• Height capability: Forklift-mounted readers can scan pallets stacked up to 16m by adjusting antenna position.
• Improved accuracy: Active scanning during transport reduces missed reads caused by static reader blind spots.

Handheld RFID readers supplement fixed and forklift-mounted systems for spot checks, exception handling, and inventory audits. Rugged handhelds like Zebra RFD8500 or Impinj R700 offer fast reads, reliable connectivity, and ergonomic design for warehouse staff.

Overcoming Read Range Challenges at Height

Reading RFID tags on pallets stored 16 metres or higher presents signal attenuation and interference challenges. Approaches to overcome these include:

• Using high-gain antennas: Antennas with gain above 8 dBi increase effective read range.
• Employing RFID tags with sensitive IC chips: Chips like Alien H3 enhance signal return strength.
• Optimising tag placement: Applying labels on the pallet side facing the reader improves signal path.
• Mitigating interference: Avoiding metal rack contact and using ferrite backing in tags reduces signal reflection.
• Complementing fixed readers with forklift-mounted antennas: Ensures coverage in blind spots and dynamic scanning during pallet movement.

Combining these techniques delivers consistent reads, reducing lost data and supporting accurate real-time inventory visibility.

Cost Considerations and Budgeting for RFID Pallet Tracking

Hardware and Software Pricing Overview

Implementing RFID pallet tracking involves upfront costs for labels, readers, middleware, installation, and training. Typical ballpark estimates for a warehouse tracking 20,000+ pallets include:

• RFID labels: Disposable UHF labels for goods cost approximately £0.15–£0.40 each, depending on durability and chip type. Rugged pallet tags can cost £1–£3 per tag.
• Fixed readers and antennas: High-performance readers like Impinj Speedway R420 range from £1,500 to £3,000 each; antennas cost £200–£500 each. A large warehouse may require 10–20 readers and 30–50 antennas.
• Forklift-mounted readers: Equipment packages with reader, antennas, and mounting brackets typically cost £3,000–£6,000 per forklift.
• Handheld readers: Rugged handheld RFID readers range from £1,200 to £2,500 per unit.
• Middleware and software: Warehouse integration platforms typically start around £10,000–£25,000 depending on features and scale. Custom integration with WMS/ERP may incur additional consultancy fees.
• Installation and training: Professional setup and staff training can add 10–20% to hardware/software costs.

These figures provide a starting point for budgeting. Economies of scale and supplier flexibility may reduce costs.

Cost-Benefit and ROI Insights

RFID investments yield returns primarily by reducing stock errors, cutting labour costs, and improving throughput. Industry case studies show:

• Inventory accuracy improvements from 85% to over 99.5% within 6–12 months.
• Labour cost reductions of 20–30% by automating manual scanning tasks.
• Order fulfilment speed increases of 15–25%, reducing delivery delays.
• Reduced stock holding costs through better visibility and fewer stockouts or overstocks.

Typical ROI timelines range from 12 to 24 months, depending on warehouse size and process complexity. Detailed financial modelling should consider operational savings versus capital and recurring costs.

Integration with Warehouse Management Systems

Seamless integration of RFID data with existing WMS and ERP platforms is essential for real-time visibility and process automation. Integration approaches include:

• Using middleware that aggregates RFID reads, filters duplicates, and formats data for WMS consumption.
• Configurable APIs and connectors to map RFID tag IDs to pallet and SKU master data.
• Synchronising RFID events with warehouse workflows such as receiving, putaway, picking, and dispatch.
• Ensuring data security and compliance with company IT policies.

Close collaboration with WMS vendors and IT teams during planning and deployment ensures smooth data flow and maximises RFID benefits.

Deployment Tips and Best Practices

Step-by-Step Implementation Checklist

A structured deployment approach reduces risks and accelerates ROI. Key steps include:

1. Define objectives and scope: Identify tracking requirements, pallet volumes, rack heights, and integration points.
2. Conduct site survey: Assess warehouse layout, materials, potential interference sources, and forklift traffic.
3. Select RFID labels and hardware: Choose tags and readers that meet durability and read range needs.
4. Plan hardware placement: Design fixed reader and antenna locations plus forklift-mounted reader installation.
5. Develop integration strategy: Coordinate with WMS/ERP vendors for middleware and data mapping.
6. Install hardware and test: Set up readers, antennas, and labels; validate read rates and coverage.
7. Train staff: Educate operators on RFID scanning procedures, troubleshooting, and system usage.
8. Conduct pilot run: Monitor performance, refine configuration, and address issues.
9. Roll out full deployment: Scale system across warehouse zones with continuous monitoring.
10. Implement maintenance schedule: Regularly check hardware health, label integrity, and software updates.

Maintenance and Troubleshooting

Maintaining RFID system reliability requires ongoing attention. Best practices include:

• Regularly inspecting and replacing damaged RFID labels and tags.
• Cleaning antennas and readers to prevent signal degradation from dust or debris.
• Monitoring reader logs for error rates and read inconsistencies.
• Calibrating reader power levels and antenna alignment periodically.
• Promptly addressing hardware faults or network connectivity issues.
• Keeping firmware and middleware software up to date.

Staff Training and Change Management

Successful RFID adoption depends on user acceptance and correct operation. Effective strategies include:

• Providing hands-on training sessions tailored to different user roles (forklift operators, warehouse managers, IT support).
• Developing clear SOPs for RFID scanning, tag application, and exception handling.
• Communicating benefits to staff to encourage buy-in.
• Setting up feedback channels to capture and resolve user issues swiftly.
• Incorporating RFID system usage into performance metrics and incentives.

Case Study: Efficient Pallet Tracking in a 16m High Warehouse

Challenges Faced

A 3PL logistics operator managing over 20,000 retail brand pallets in a 16-metre high warehouse sought an RFID solution to improve pallet tracking accuracy and operational efficiency. Key challenges included:

• Reading RFID tags reliably at rack heights exceeding 16 metres.
• Tracking pallets containing liquids that attenuate UHF signals.
• Integrating RFID data with existing WMS for real-time inventory visibility.
• Budgeting hardware and software costs for a large-scale deployment.
• Ensuring minimal disruption during system installation and staff adoption.

Solution Approach with Labels and Hardware

The solution deployed included:

• Disposable UHF RFID labels with ferrite backing applied to individual cartons containing liquids, mitigating signal loss.
• Rugged pallet tags with IP67-rated encapsulation affixed to pallet corners, ensuring durability and consistent reads.
• Fixed readers and circularly polarised antennas installed at multiple height levels to cover aisles and rack faces.
• Forklift-mounted RFID readers with adjustable antennas to scan pallets during movement, compensating for fixed reader blind spots.
• Handheld readers for spot checks and exception handling.
• Integration of RFID middleware with WMS for seamless data flow and real-time inventory updates.

Additional deployment ideas included mounting brackets for optimal antenna orientation and exploring drone-assisted scanning pilots for inventory audits in hard-to-reach rack zones.

Cost Estimates and Deployment Ideas

Ballpark costs for this project:

• RFID labels: Approximately £0.30 per disposable label, with an estimated 50,000 labels annually for goods and pallets.
• Fixed readers and antennas: £40,000–£60,000 for 15 readers and 40 antennas.
• Forklift-mounted readers: £18,000 total for 4 forklifts equipped with RFID hardware.
• Handheld readers: £6,000 for 3 rugged units.
• Middleware and integration: £20,000–£30,000 depending on customisation level.
• Installation, training, and change management: £10,000–£15,000.

This investment was projected to deliver inventory accuracy improvements above 99%, reduce labour costs by 25%, and accelerate picking processes by 20%. The phased deployment over 6 months allowed gradual staff adaptation and system tuning.
