Lightweight Reader for High Productivity

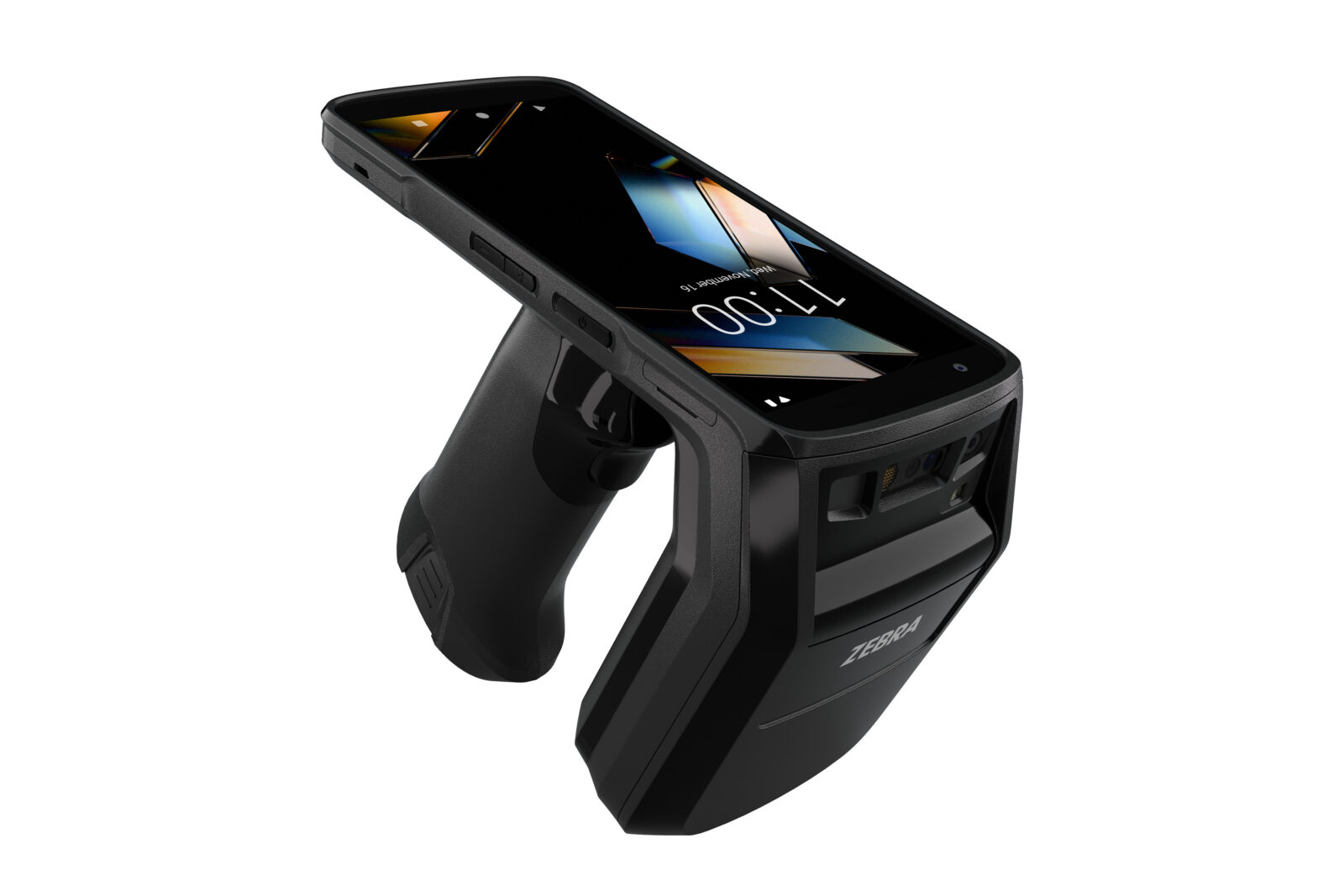

Maximize asset tracking capabilities with the all-touch Zebra TC22R Integrated Handheld RFID Reader. The new TC22R handheld reader has an integrated TC22 mobile computer and a lightweight form factor that results in reliable long-term performance with less fatigue. With Bluetooth® and Wi-Fi 6 built in, the TC22R is also easy to use and manage across any network. And as an Android-based solution that can be supported by mainstream MDMs, the TC22R takes simplicity to the next level—reducing deployment headaches and management overhead to give your business a competitive edge.
Physical Characteristics
| Dimensions | 5.7 in. H x 3.3 in. W x 6.96 in. L 14.5 cm H x 8.4 cm W x 17.7 cm L |
| Weight | 20.07 oz. / 569 g |
| Display | 6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits |
| Touch Panel | Multi-mode capacitive touch with bare or light gloved fingertip input |
| Power | User-removable, quick-release, rechargeable 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics |
| Network Connections | WLAN, WPAN |
| Notifications | Audible tone, vibration |
| Indicators | Decode LEDs, battery status LED, beeper |
| Keypad | On-screen keypad |
| Buttons | User-programmable button for barcode scanning (default), PTT or other use, volume up/down, power |
| User Input | Tri-function user-programmable trigger |
| Interface Ports | USB 3.1 (Bottom Type C), Super Speed (host and client) |
